THE CENTRAL TUNNEL AMBIENT LIGHTS SET FOR MUSTANG MACH-E RWD

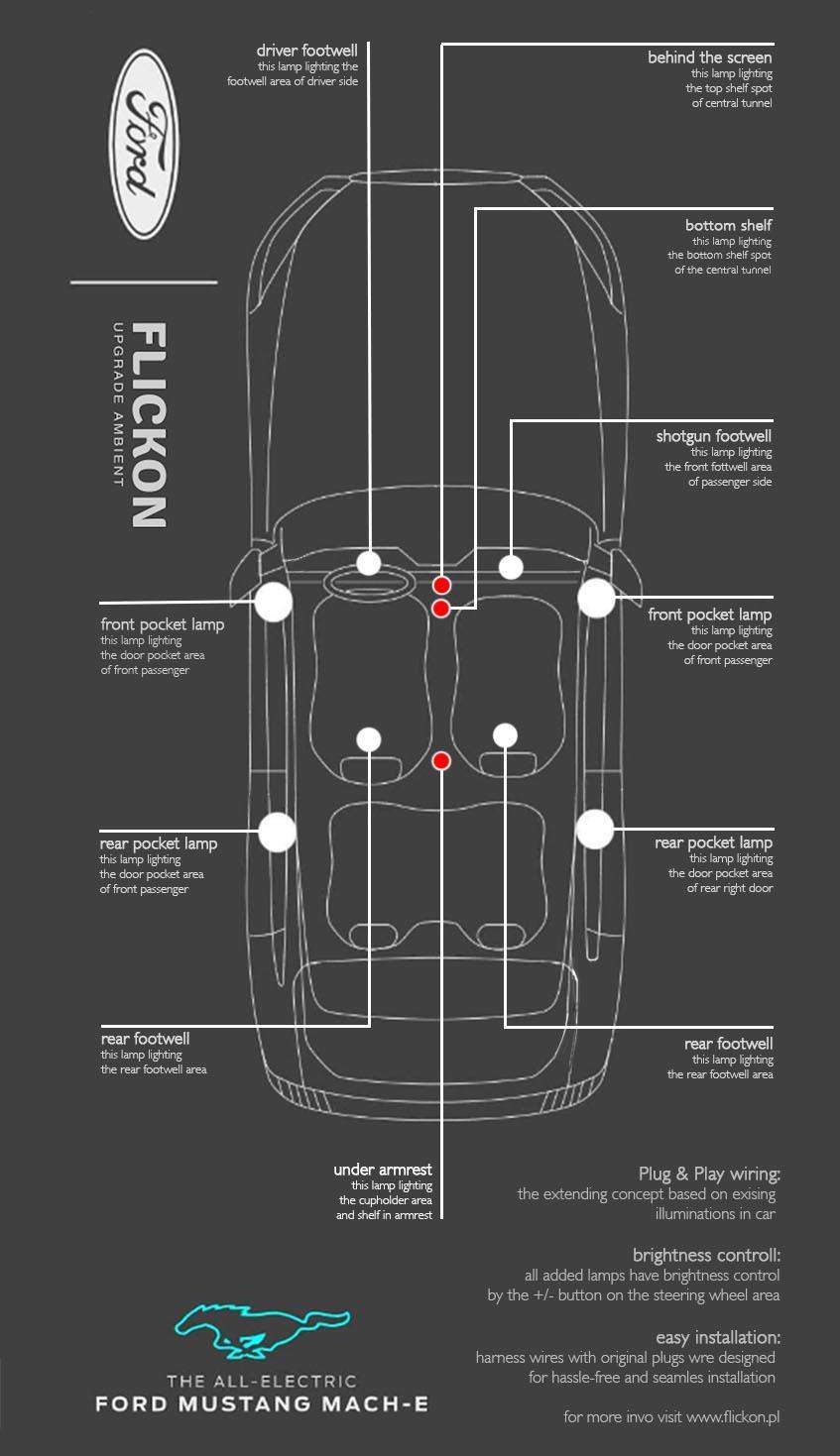

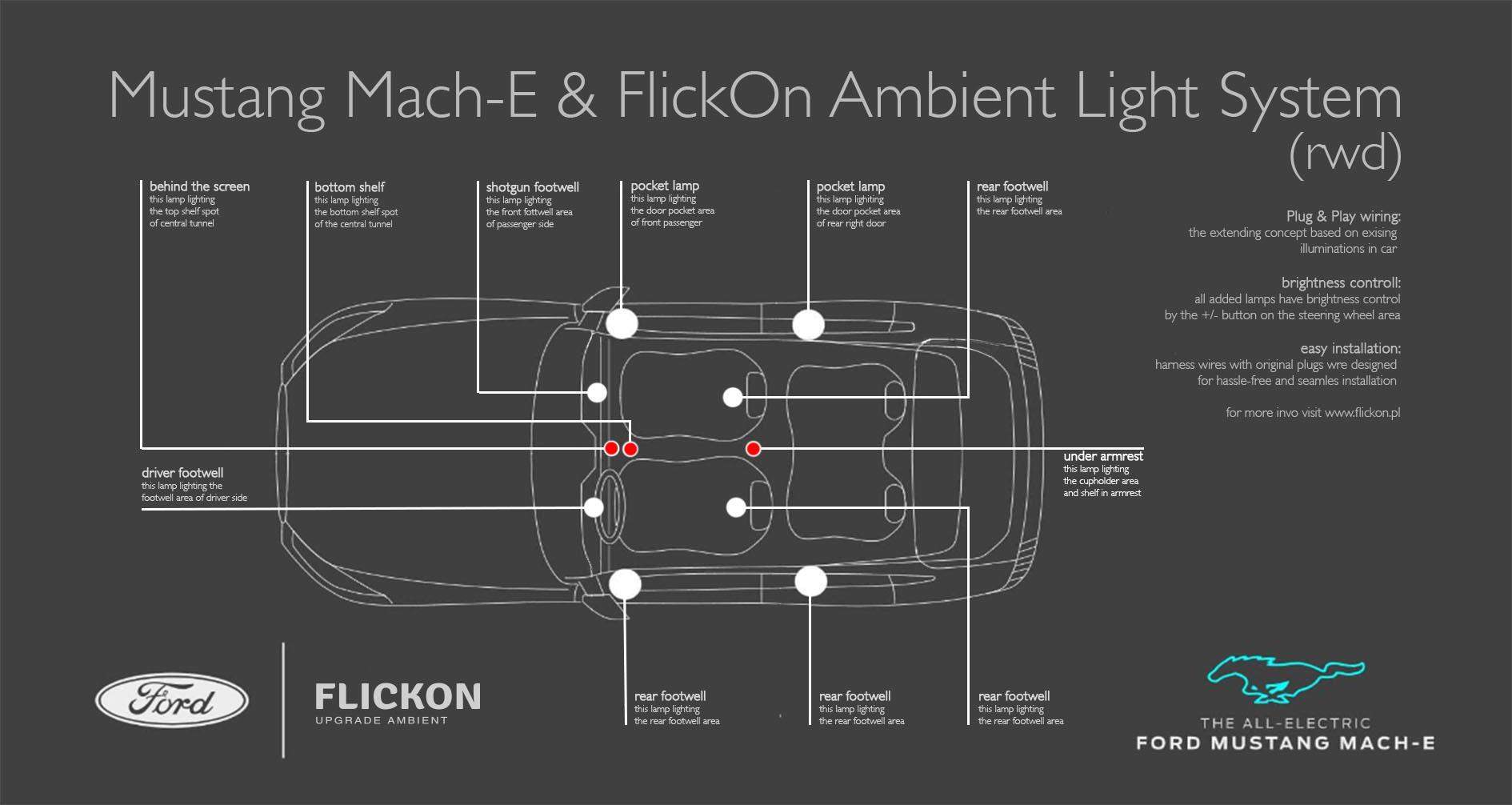

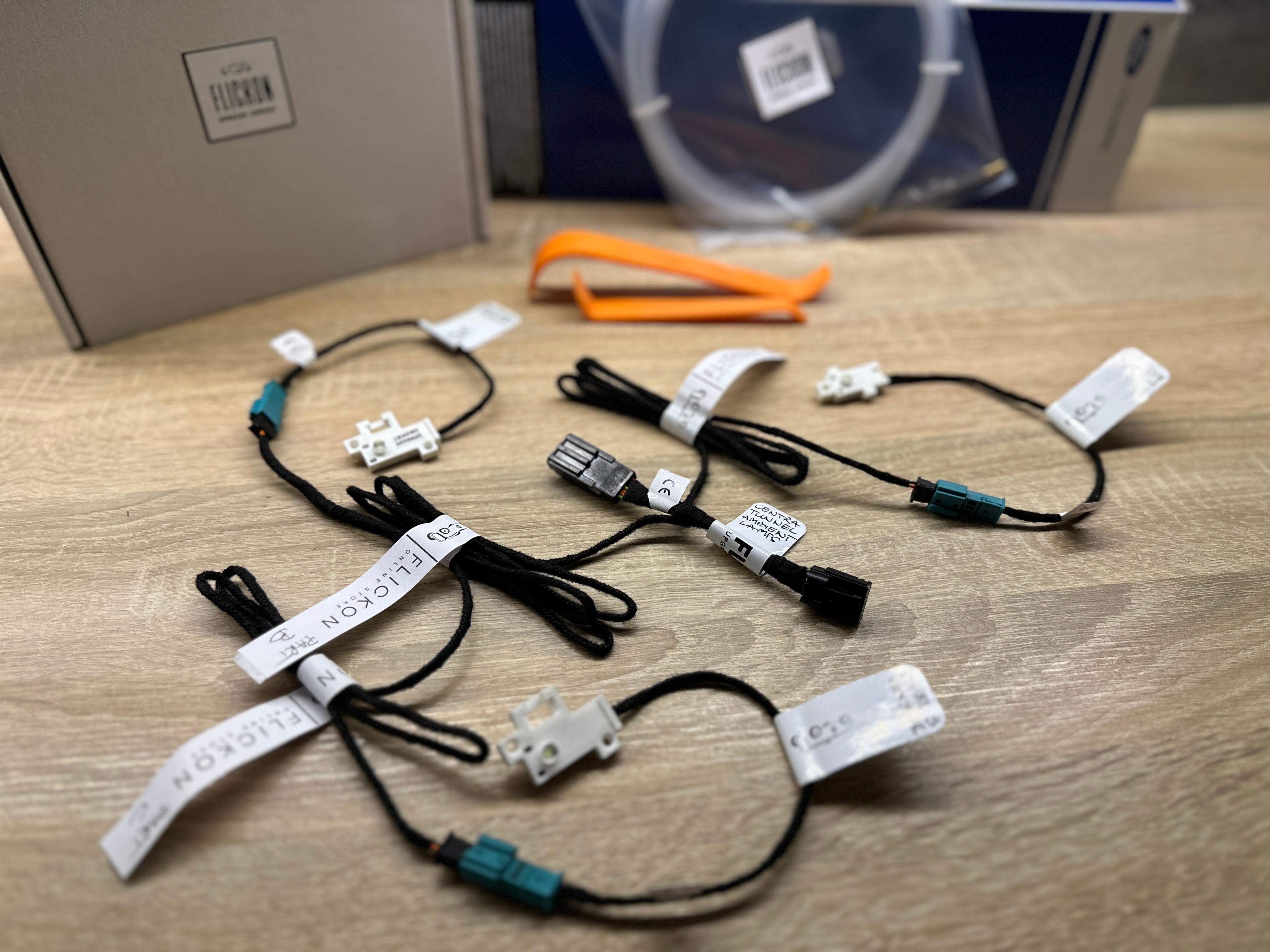

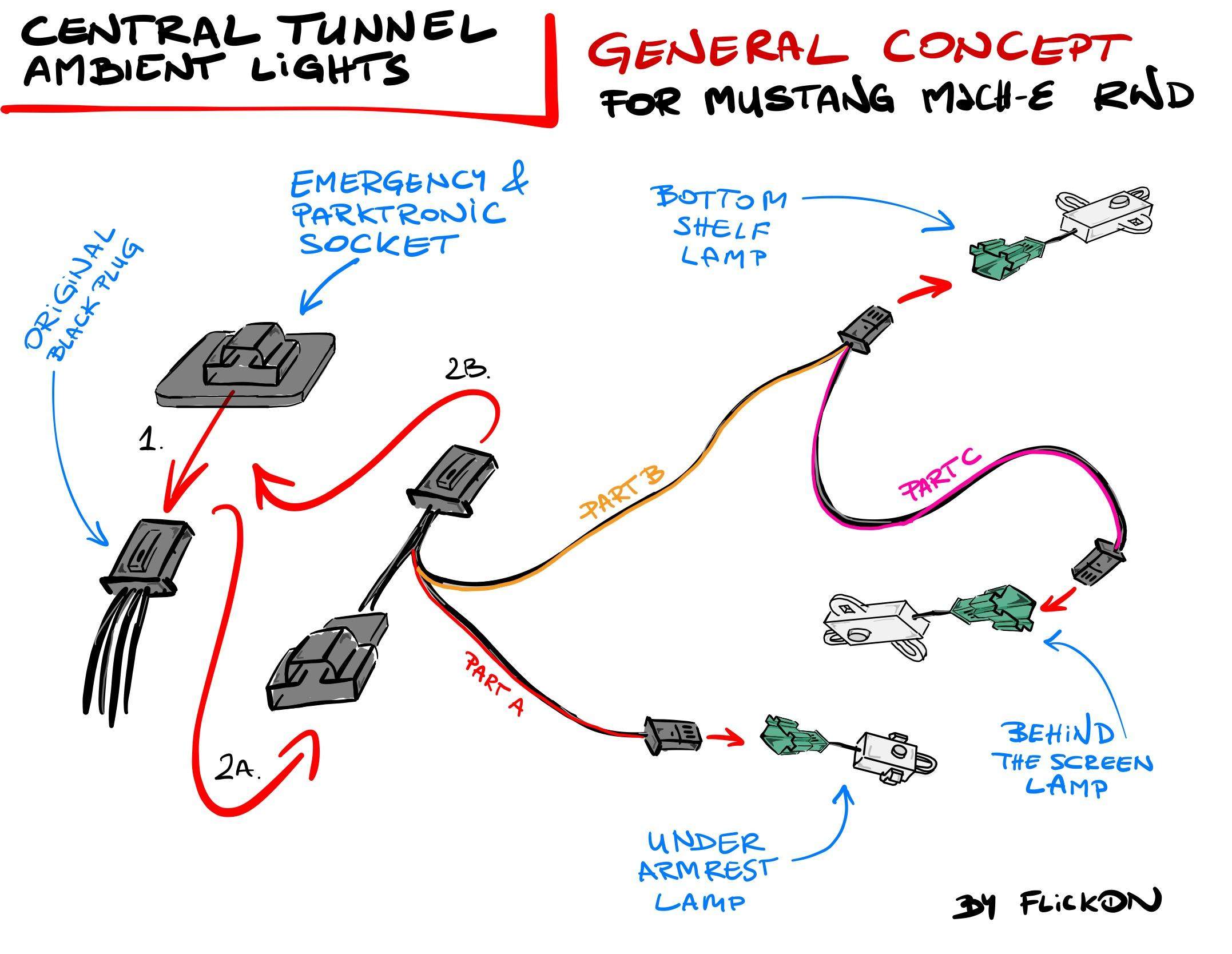

This DIY set was designed for easy and non-ivasive plug&play installation. We are powering the additional lamps using illumination from the parktronic & emergency button. We crafted the harness wire and devide it on 3 parts. Part "A" for connecting the under-armrest lamp, Part "B" for connecting the bottom shelf lamp, and Part "C" for behind the screen lamp. The whole process shouldn't take more than 30 minutes.

access to the central tunnel

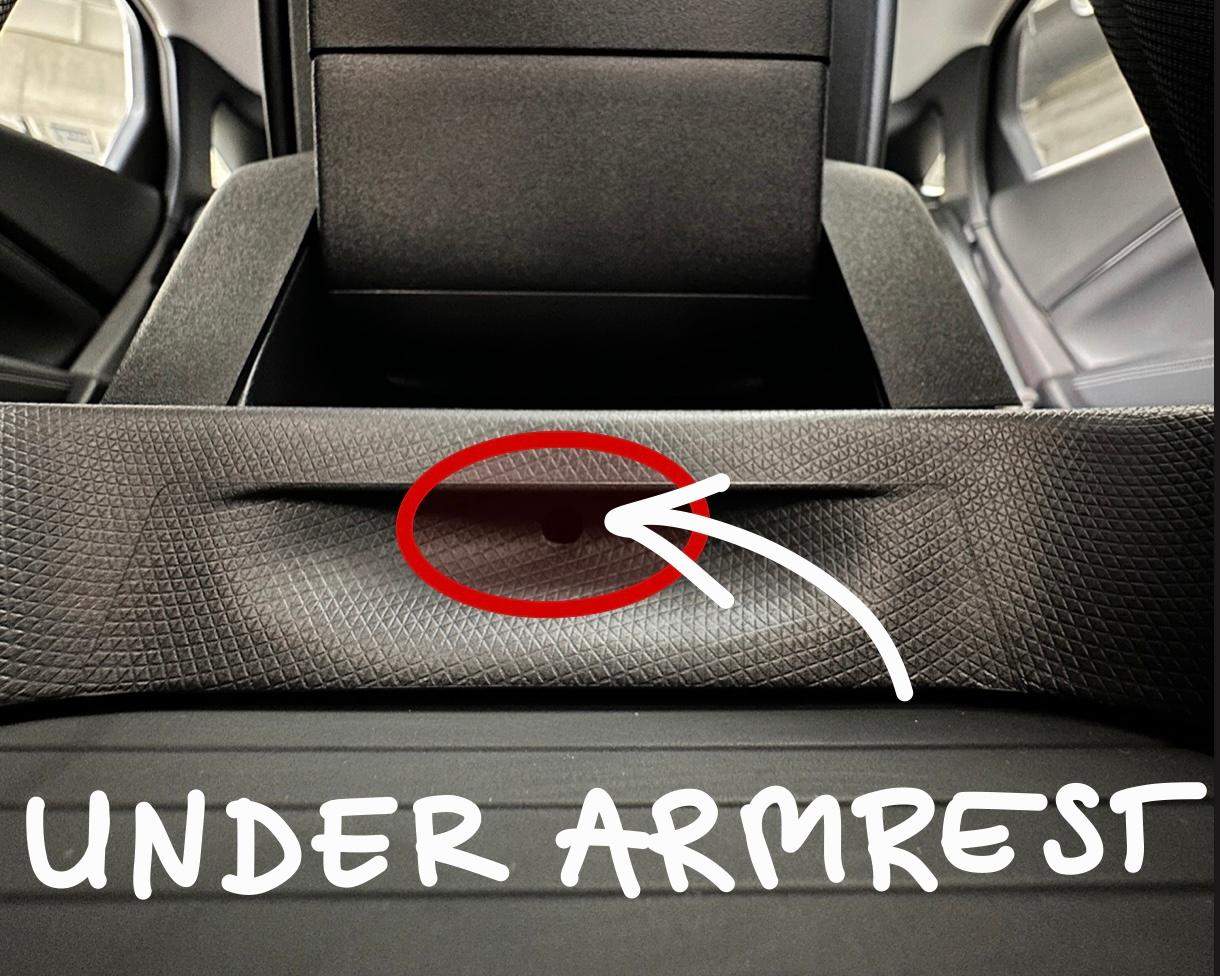

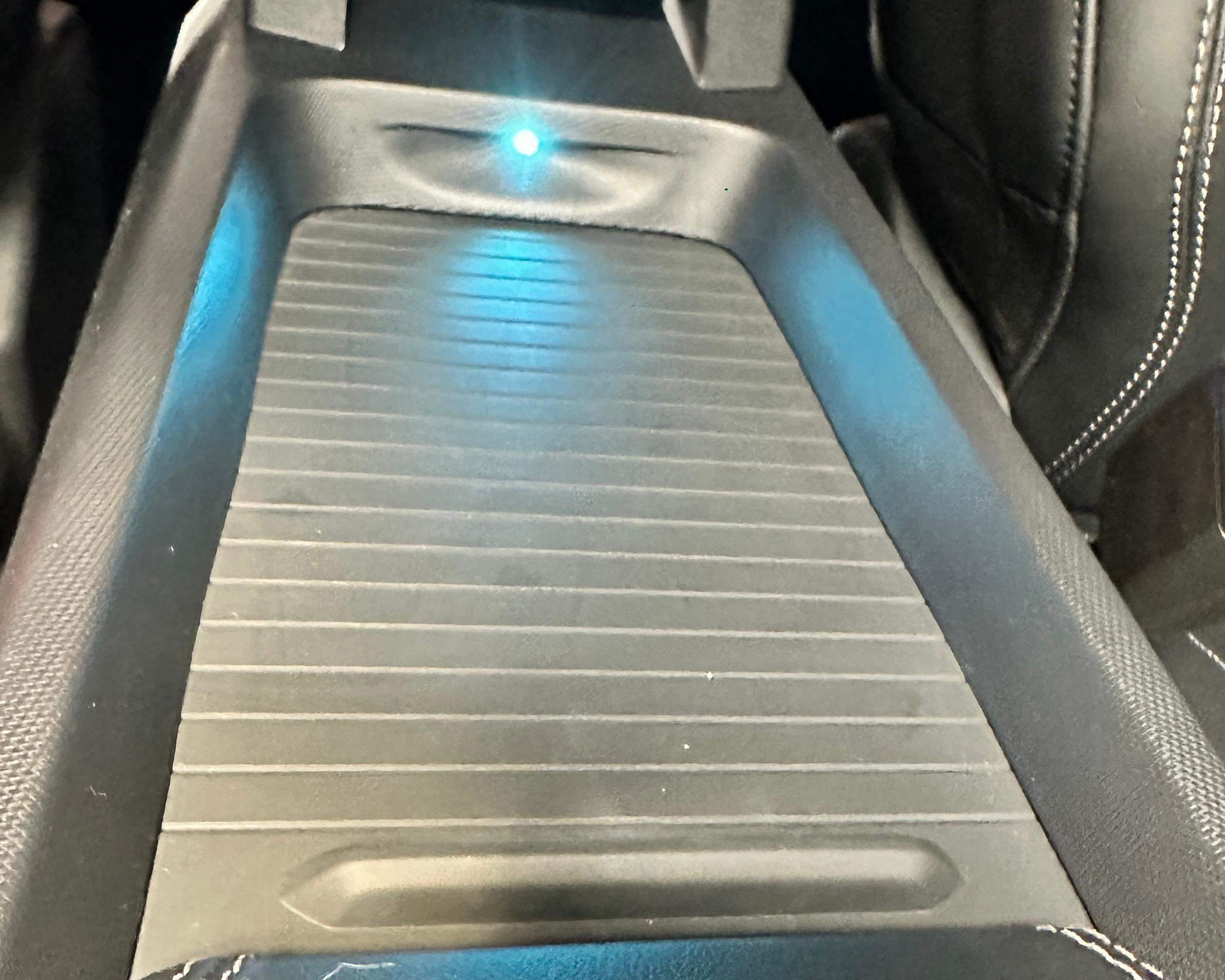

the under armrest lamp

There is ready to install socket so what you need is get access inside the central tunnel, pull the wires and mount the lamps.

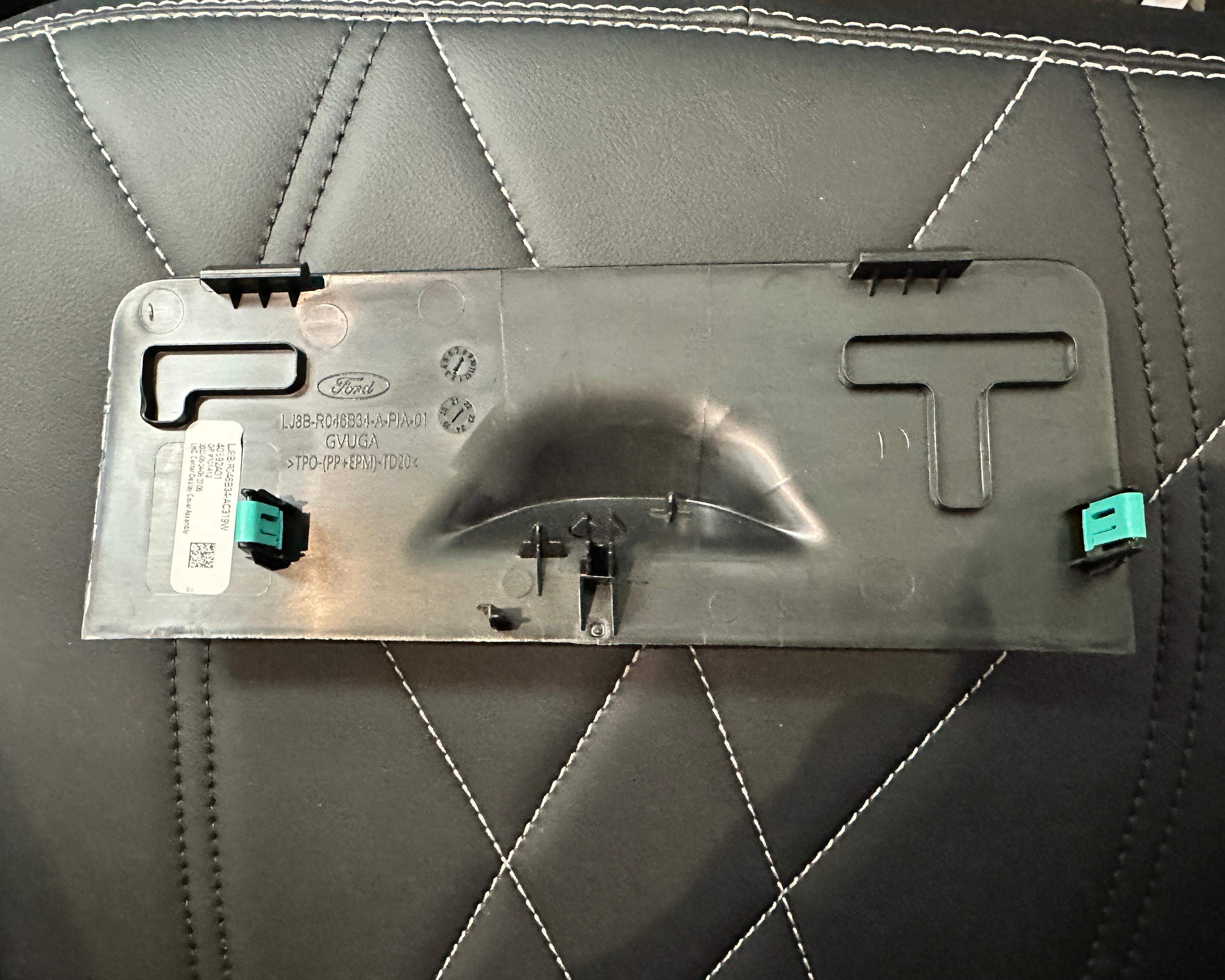

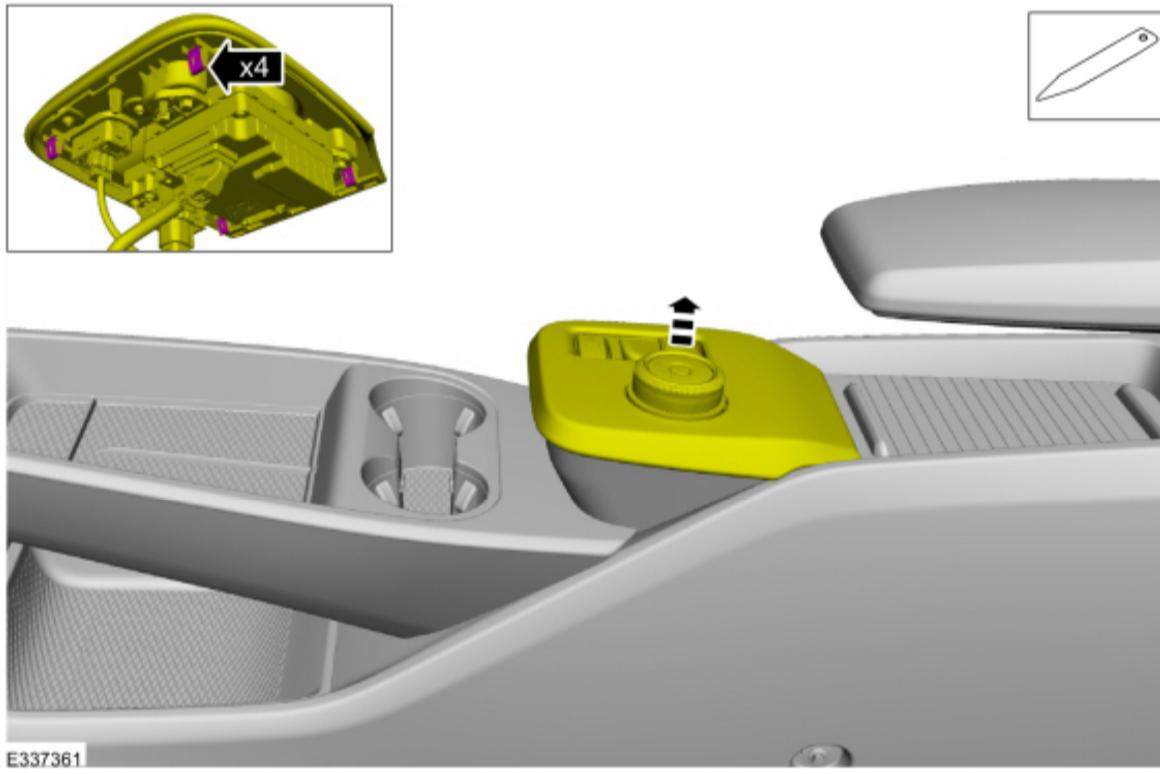

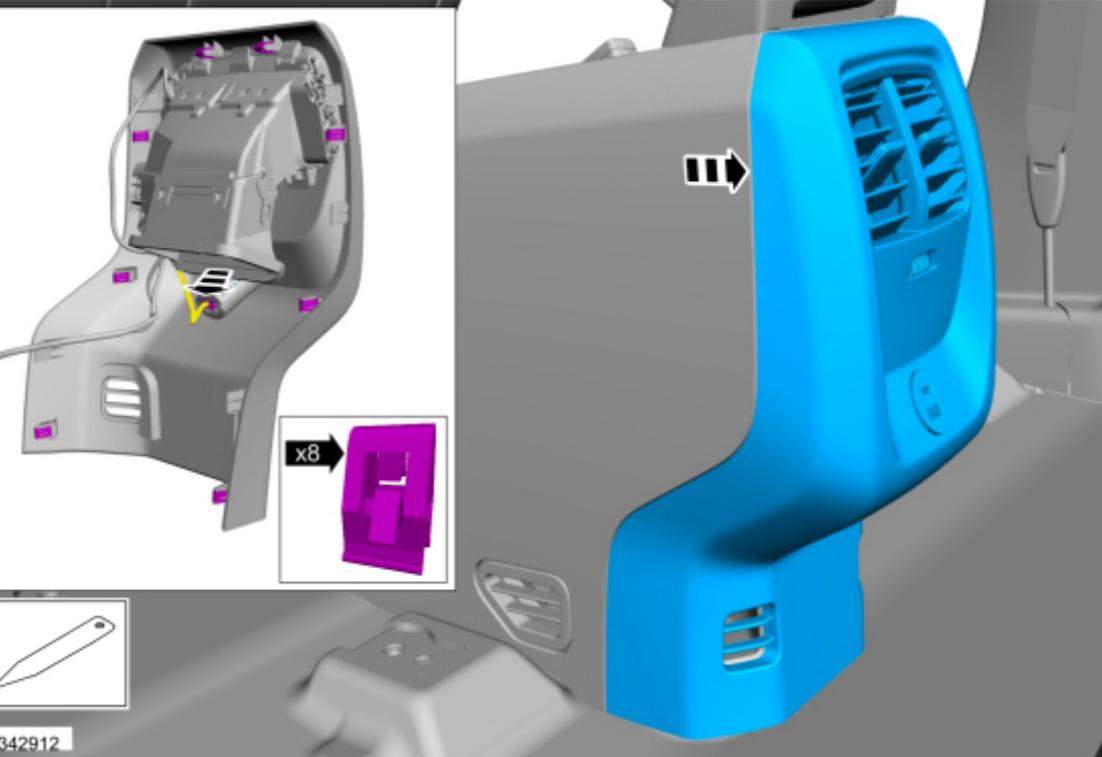

First remove the cover from the rear side

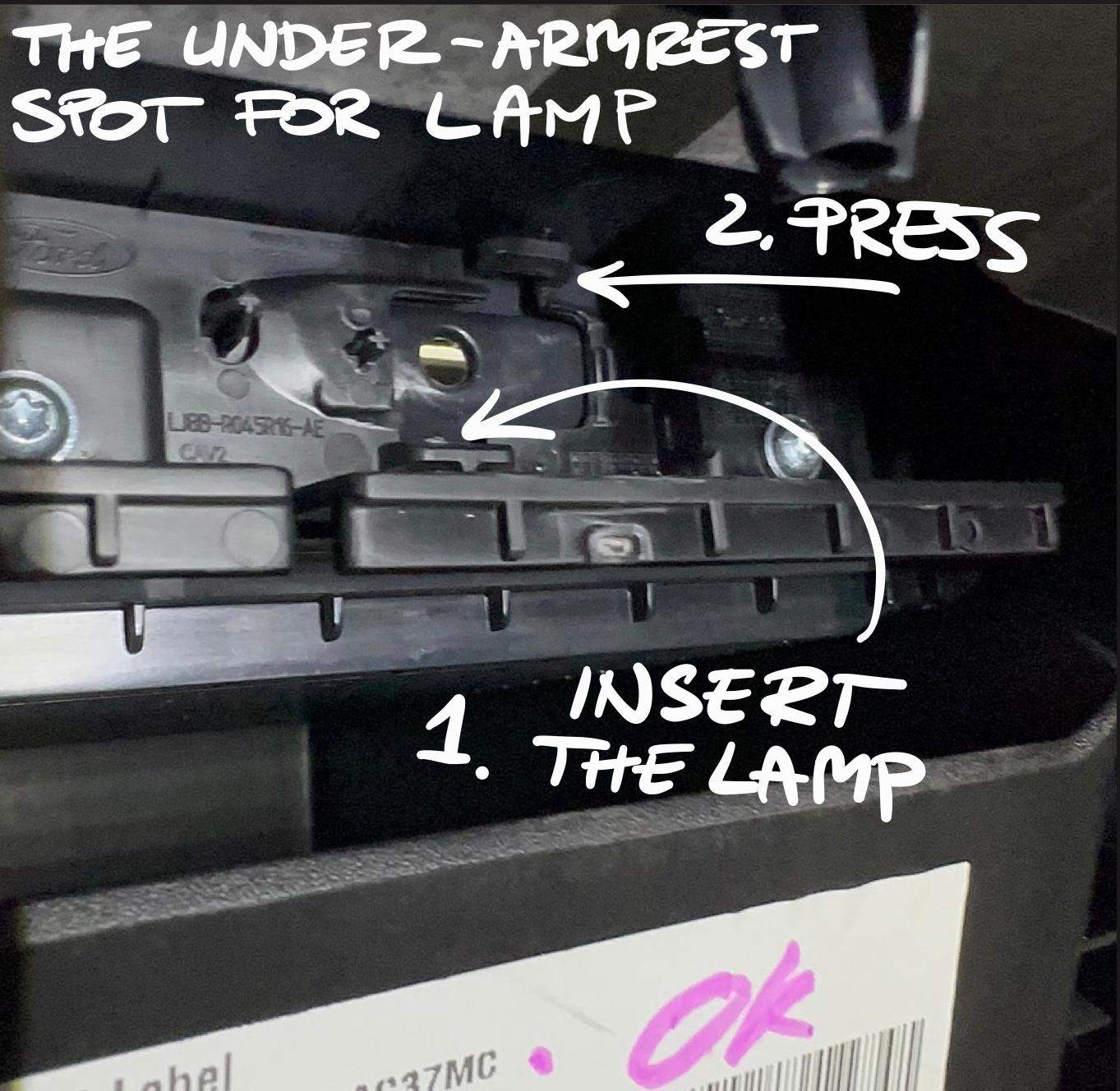

Next pull the Part A of the harness wire under the armrest shelf, and connect the power source. Next plug the lamp and install it in the socket.

the bottom shelf lamp

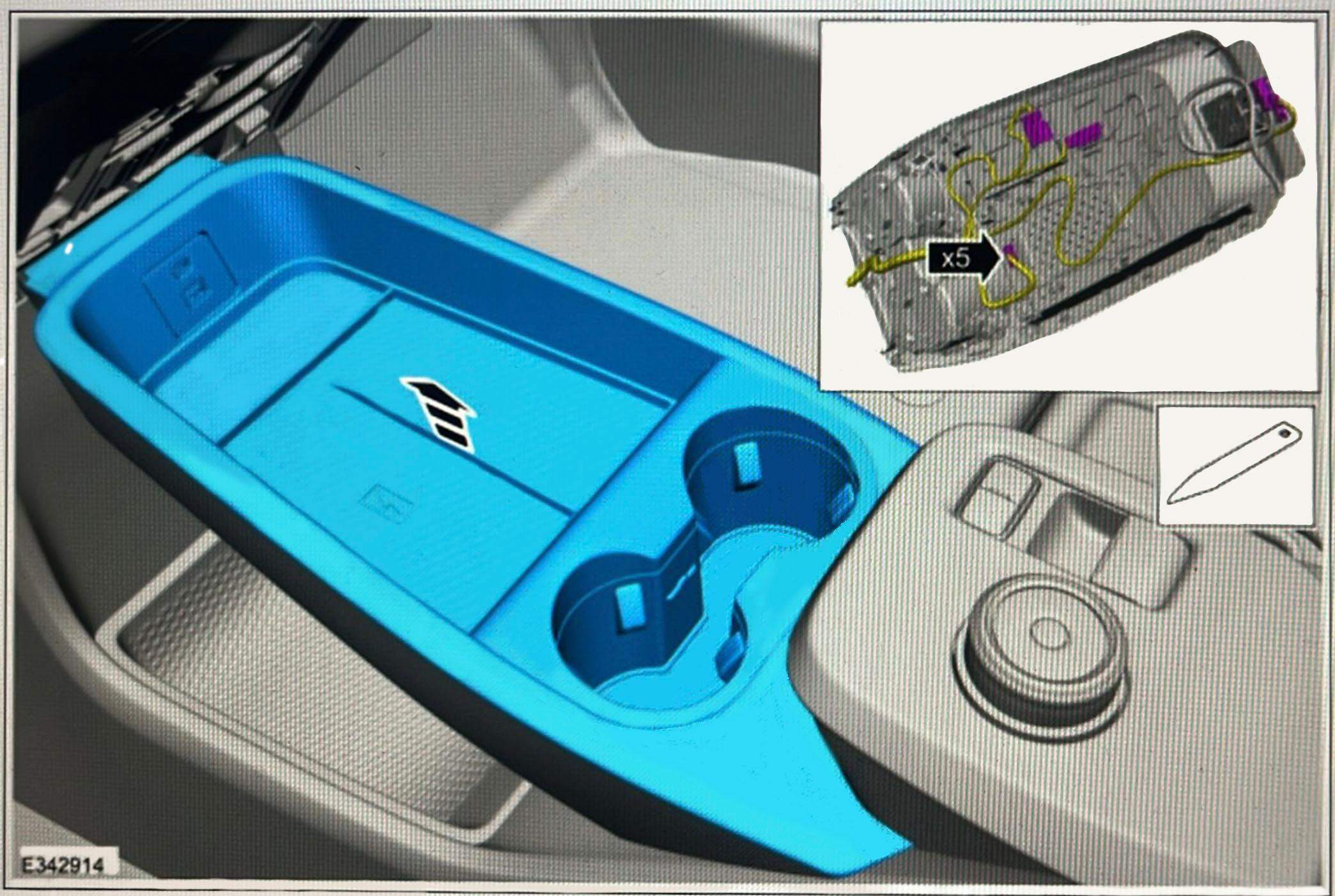

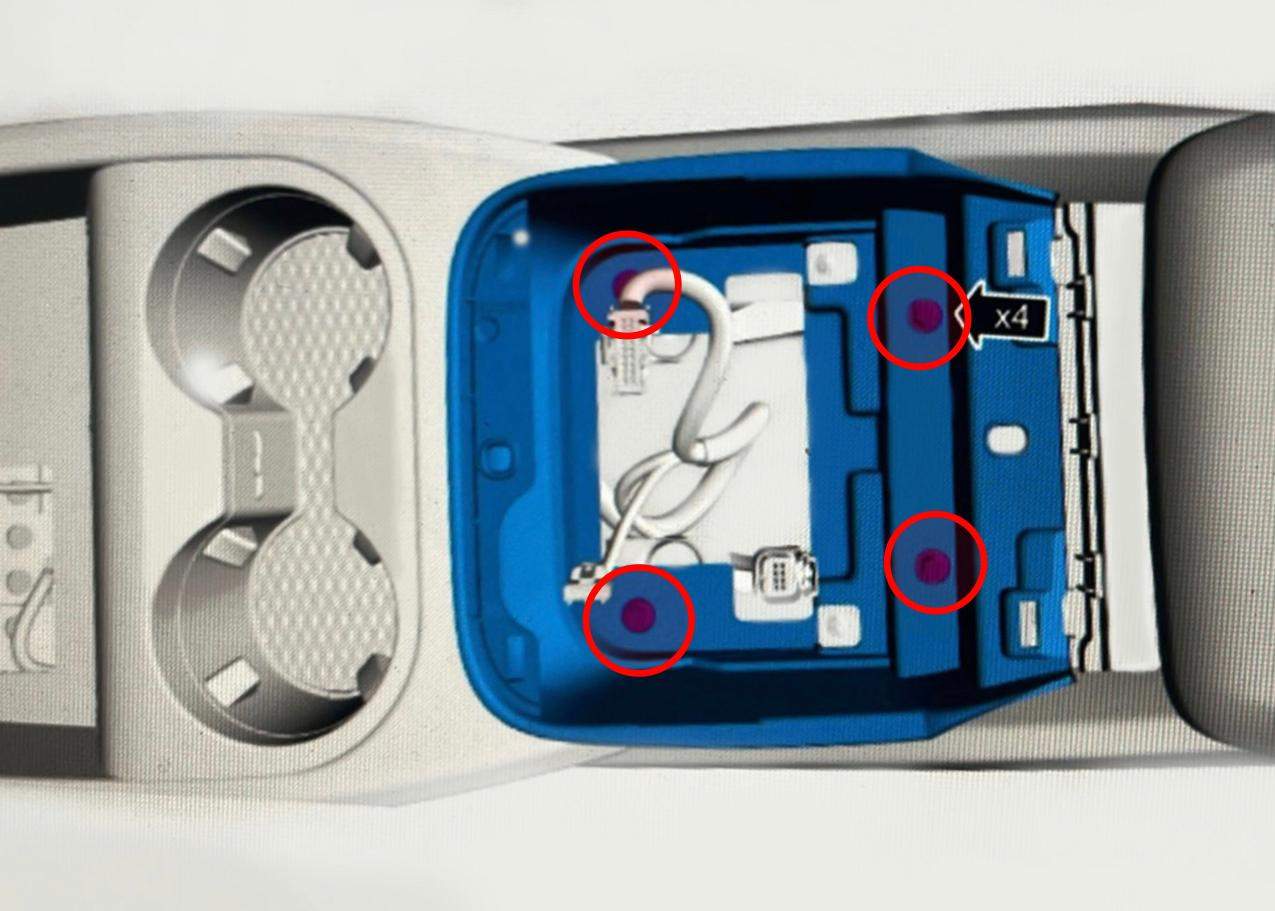

To get access remove both plastic covers from the middle and rear side of central tunnel

There is ready to install socket on plastic under the top shelf plastic cover (with cupholders).

Next pull the harness wire (Part B) to the bottom shelf lamp spot

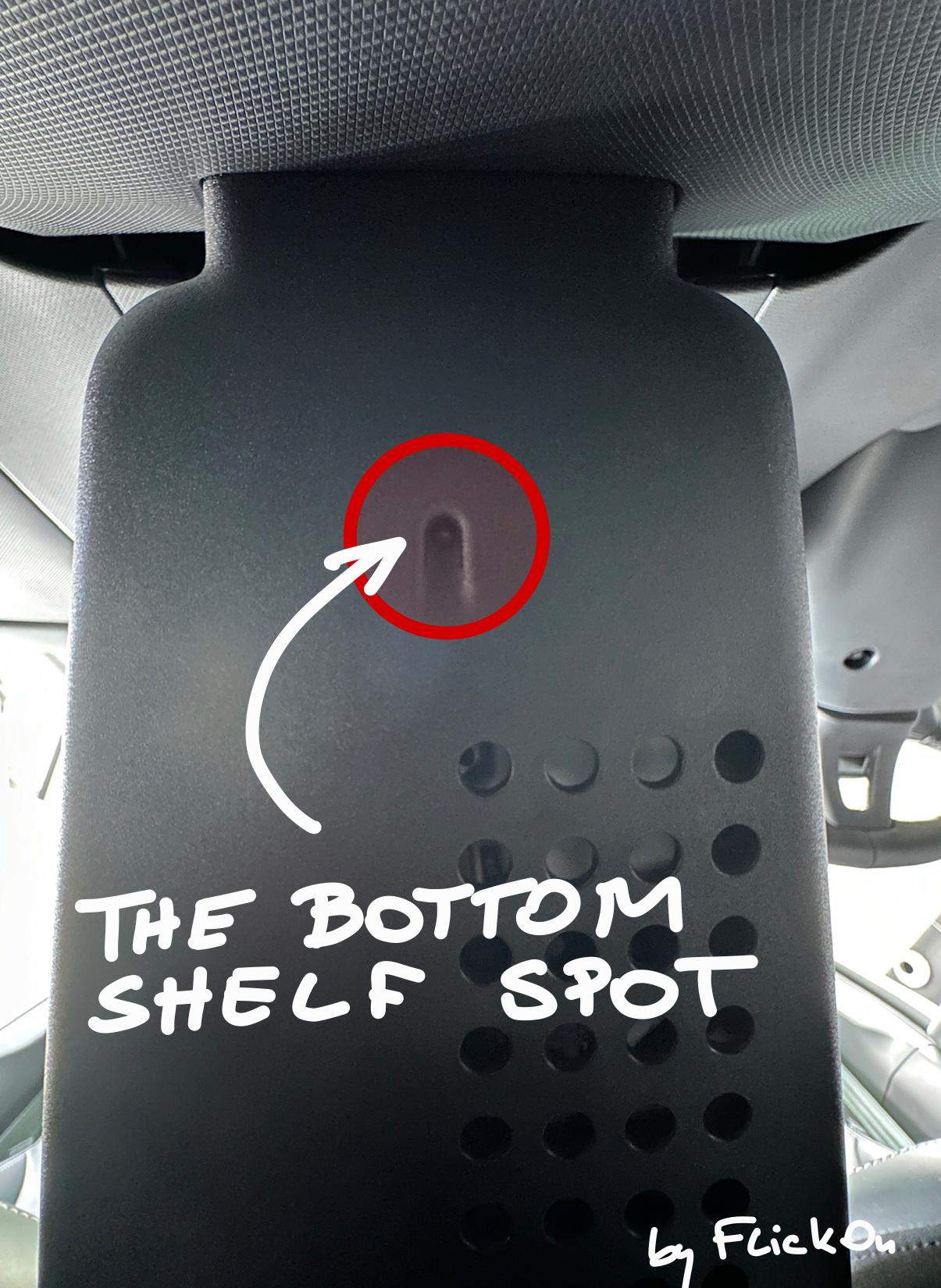

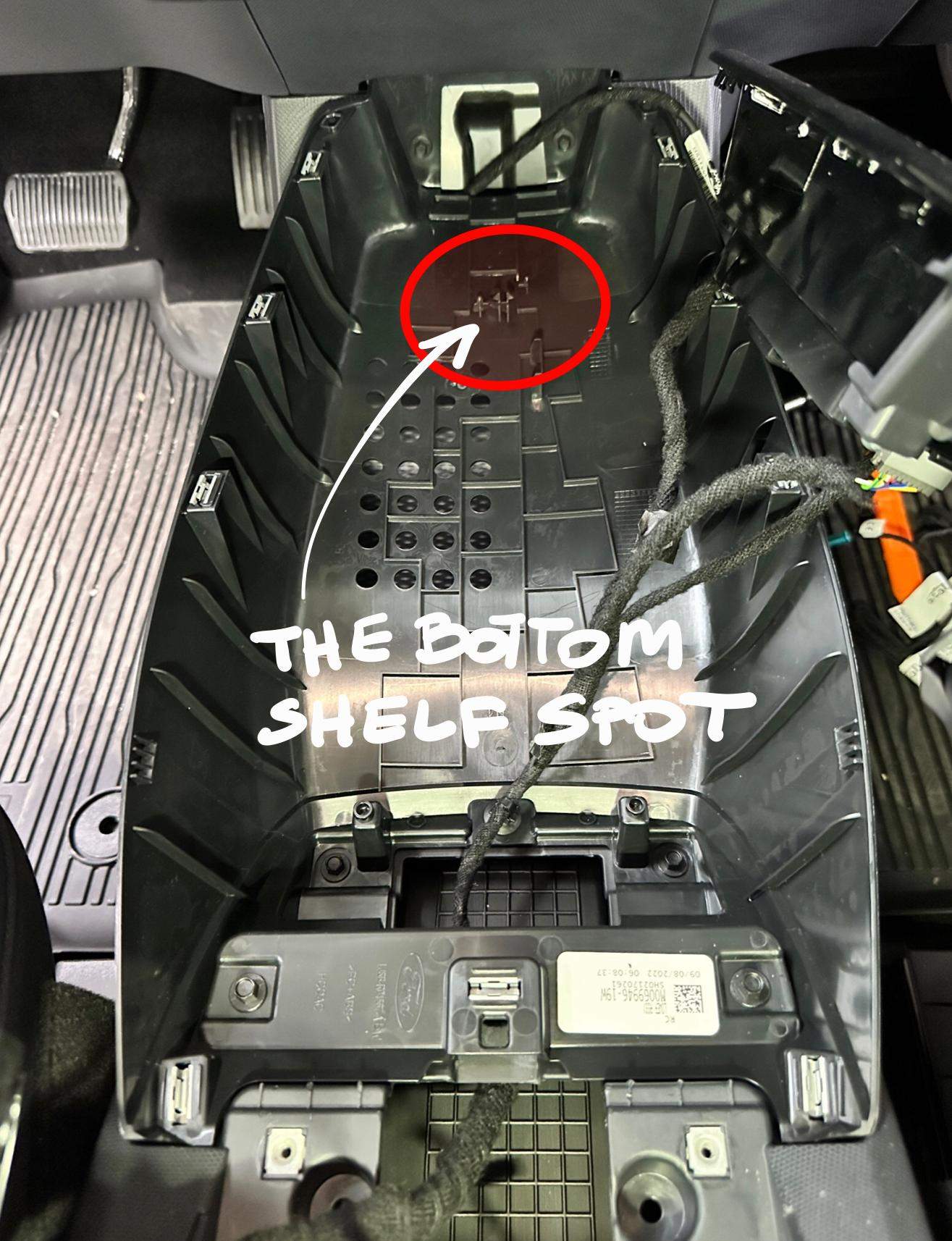

and finally install the bottom shelf lamp in the ready to insert spot.

the behind the screen lamp

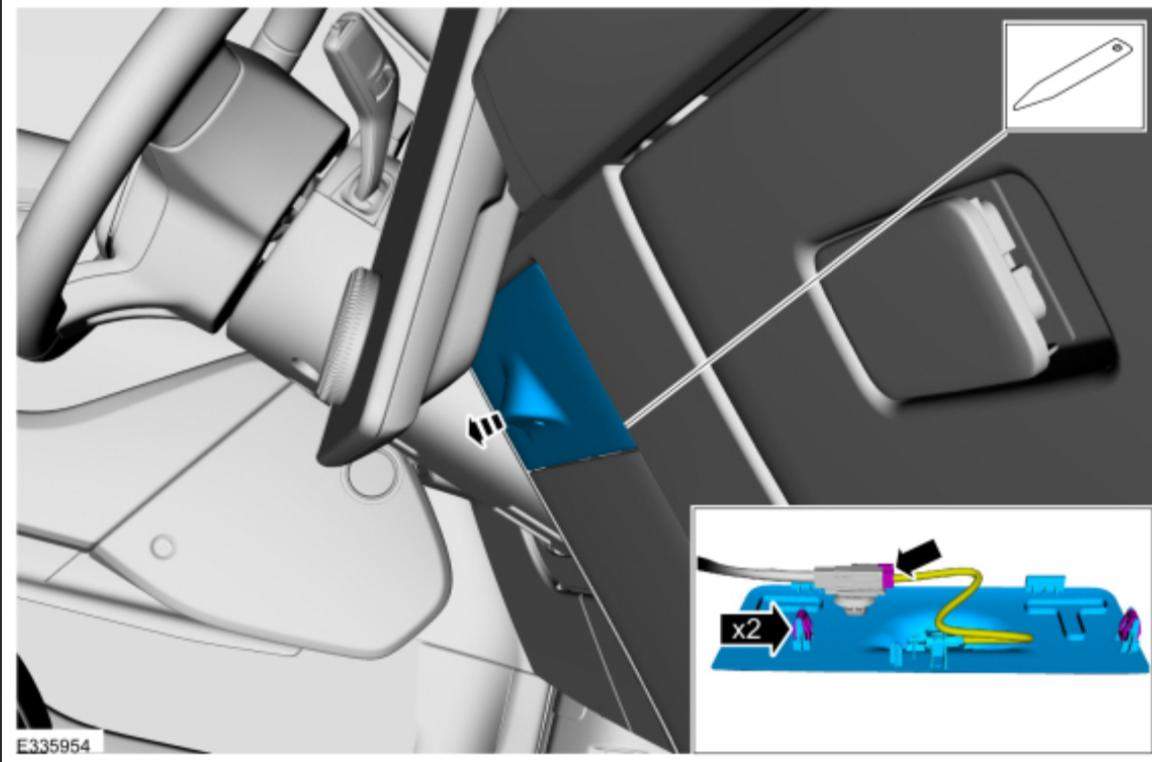

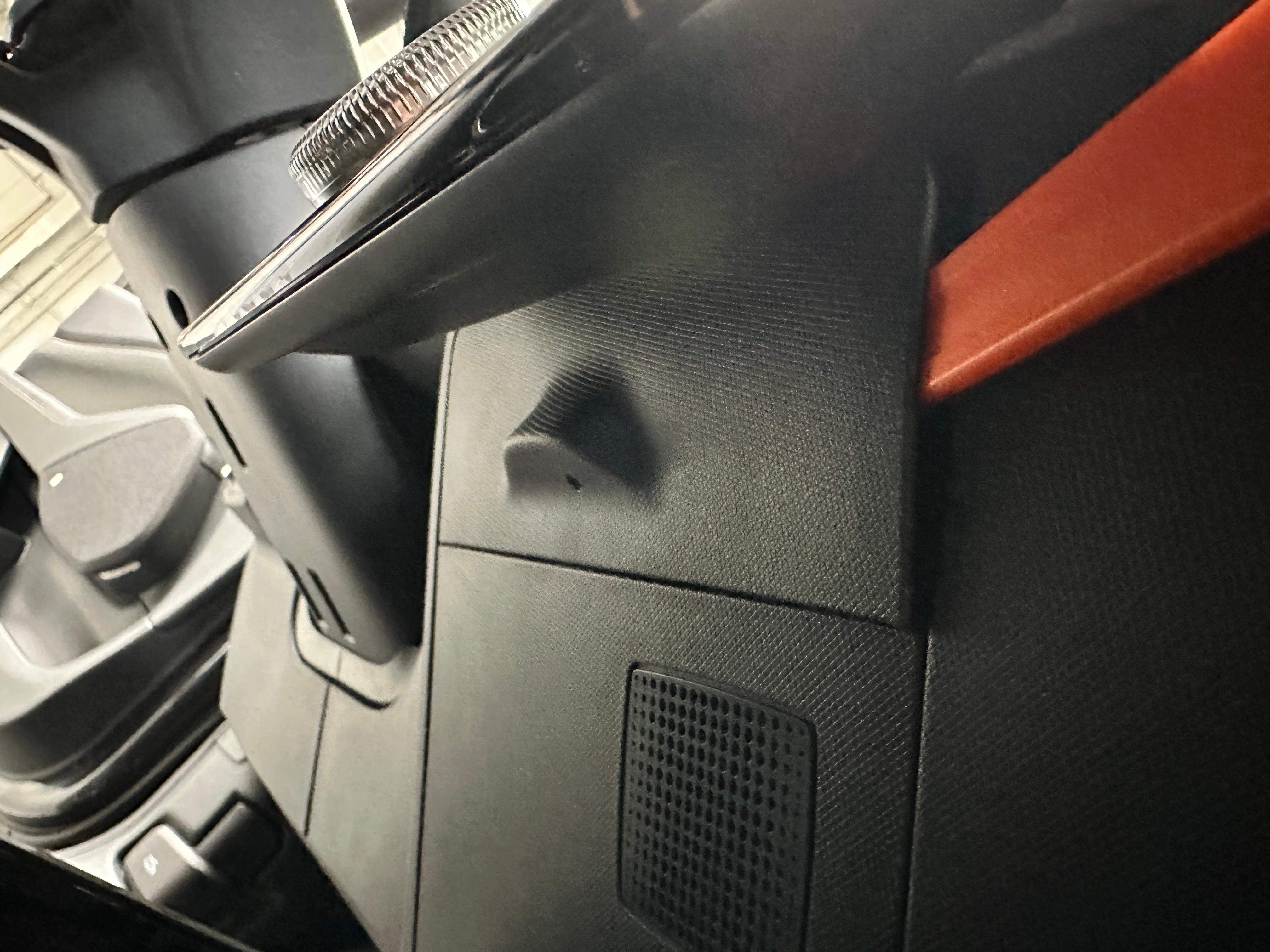

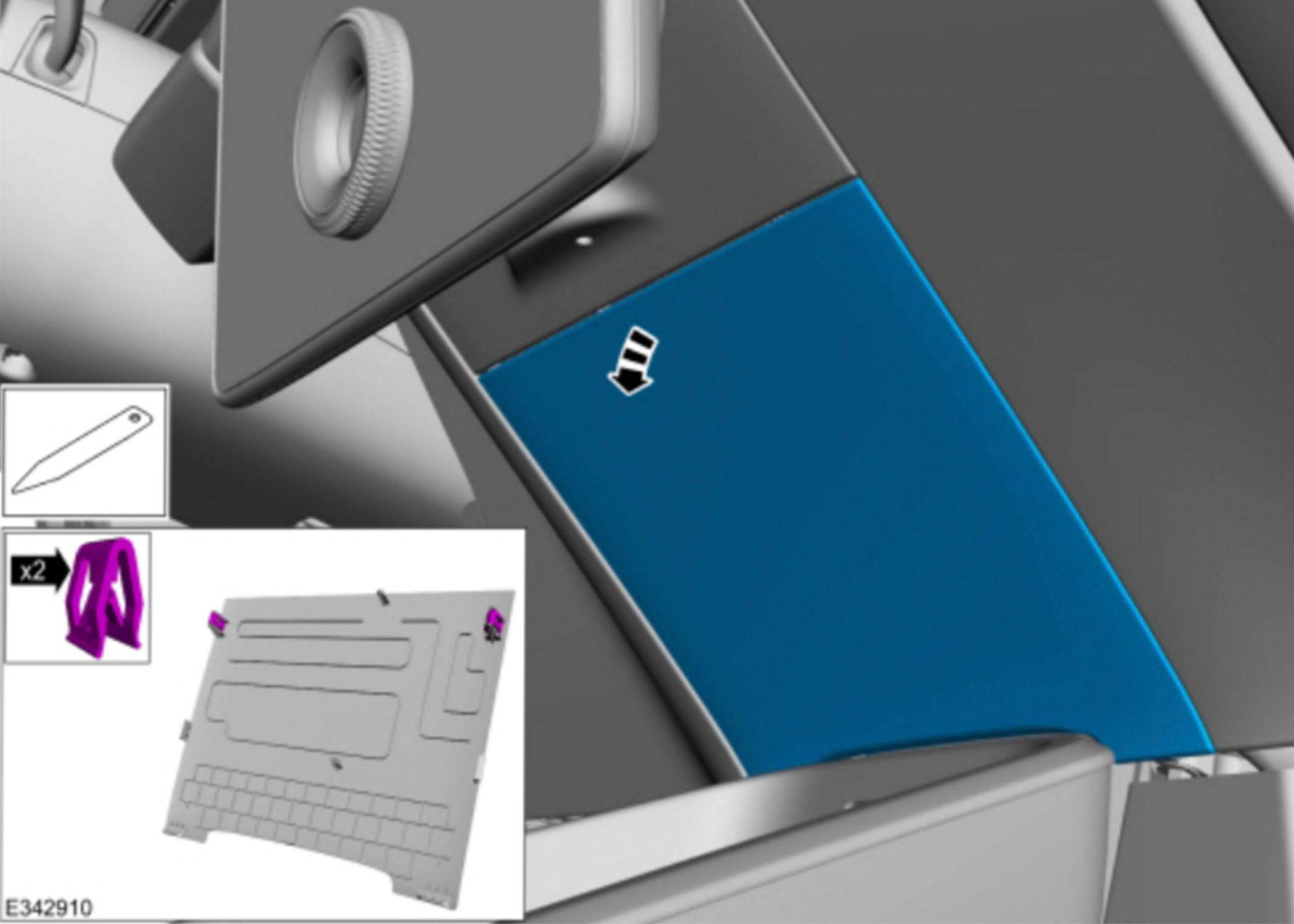

There is ready to install socket on plastic element behind the screen, so what you need is remove the plastics elemets, pull the Part "C" harness wires, connect and mount the lamps in socket.
