this section is dedicated for pocket door sets for FRONT and Rear area to Ford Mach-E (RWD)

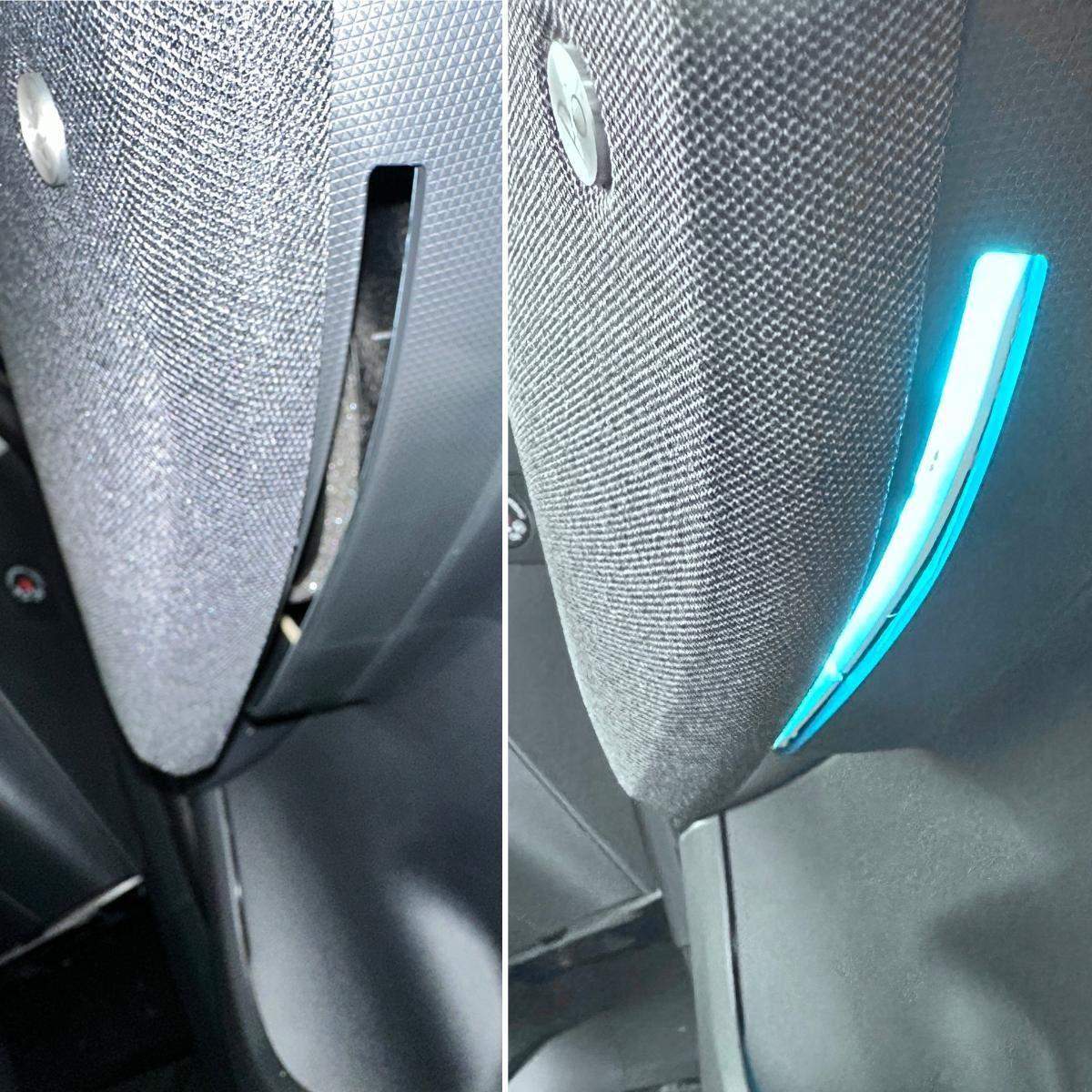

the front doors pocket lamps

This is the must-have DIY upgrade for any Mach-E RWD owner who wants to cover the missing lamps gap in front doors in original ice-blue shade. We adapted the original Ford lamps to offer easy to install solution. The presented conception works as a plug&play installation for non-invasive mounting (without quick-connects, soldering, etc.). The door pocket lamp are powered from the lock/unlock button's illumination and can be steered with brightness button from driver area. The installation is simple and shouldn't take more than 20 min per door.

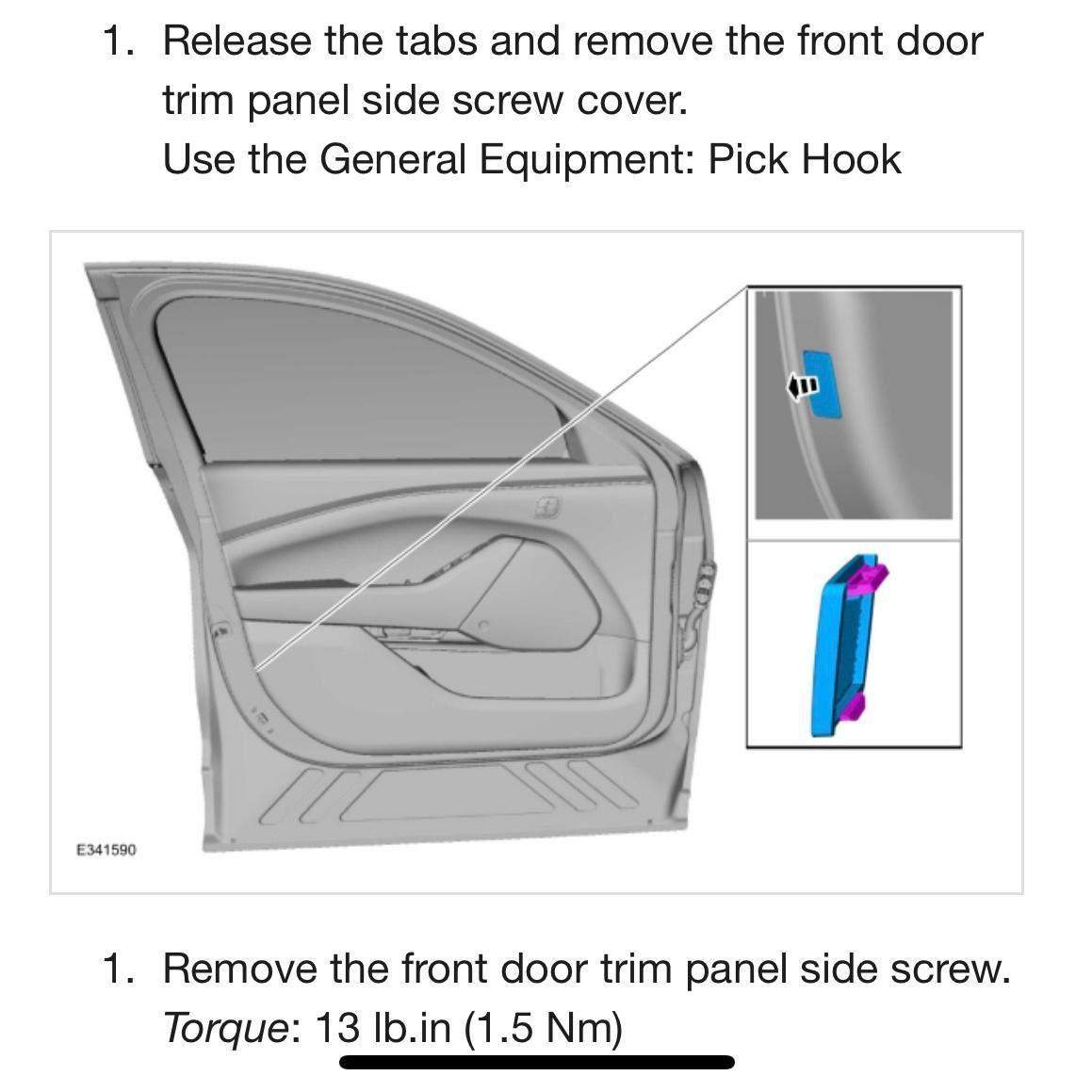

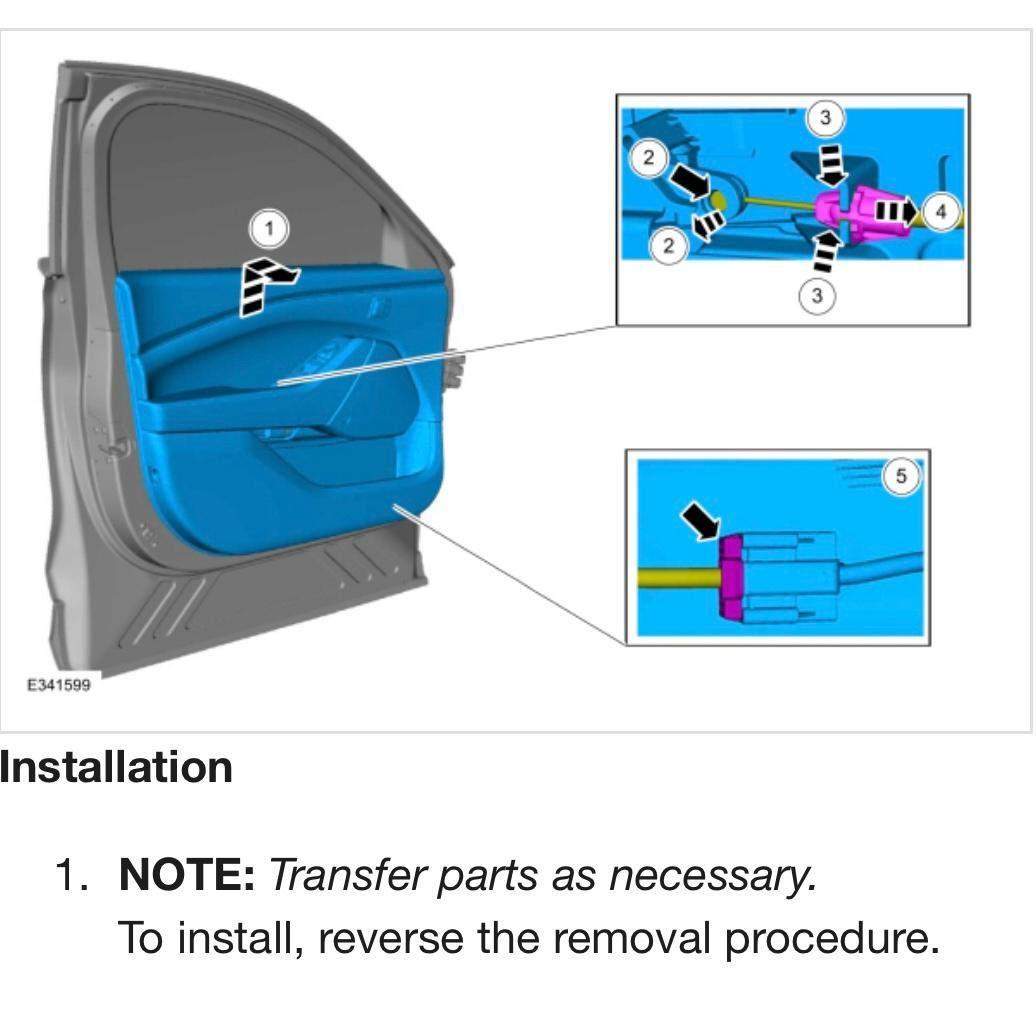

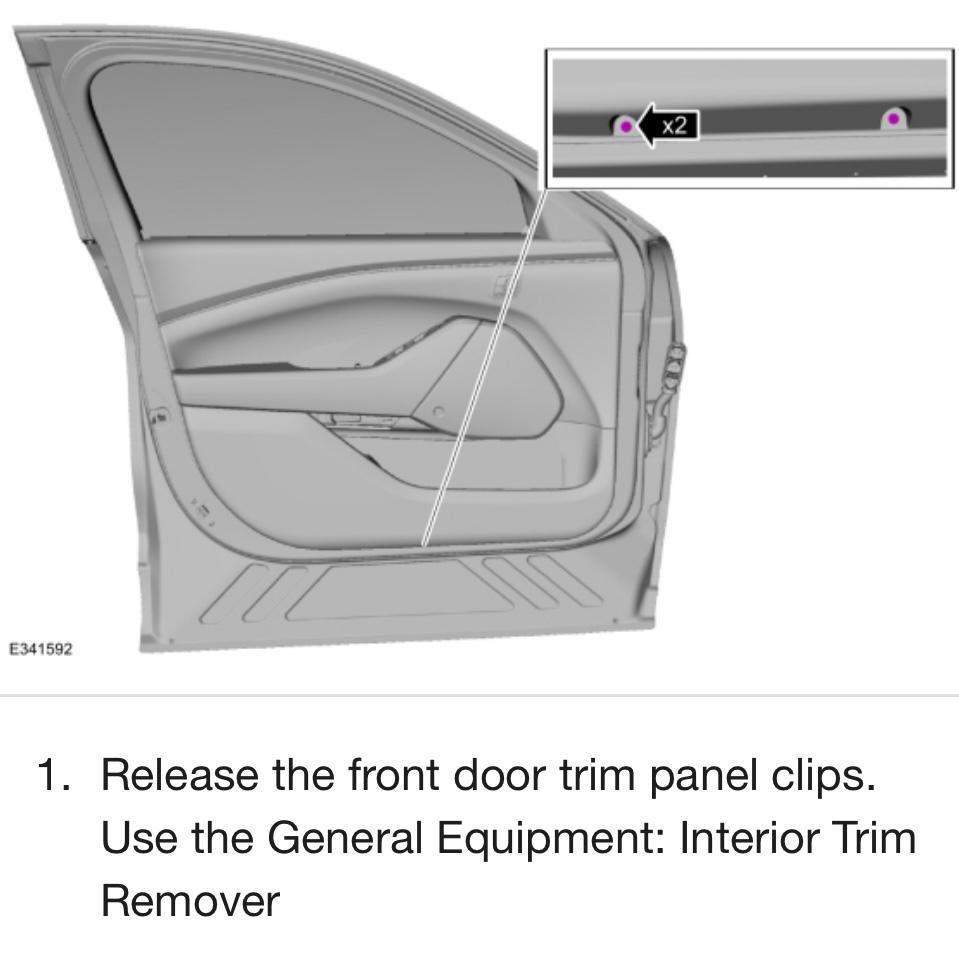

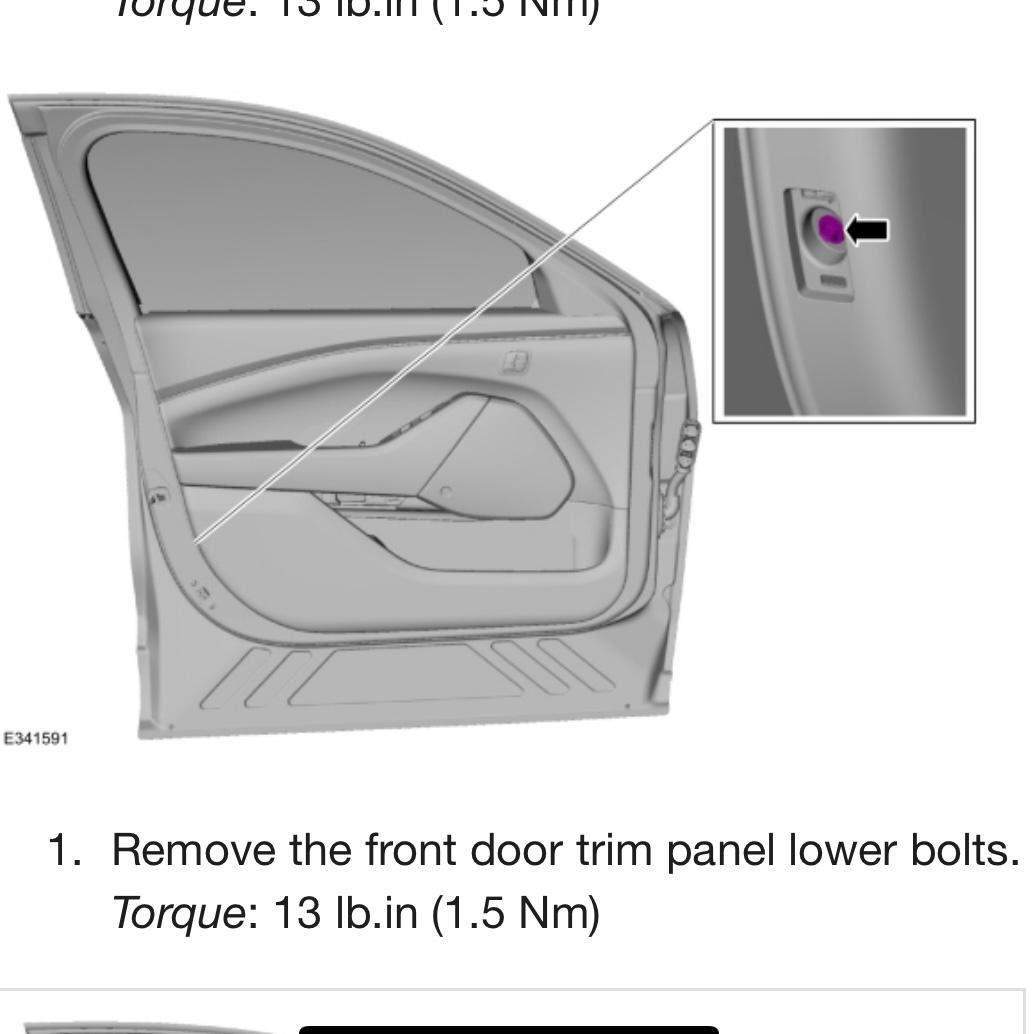

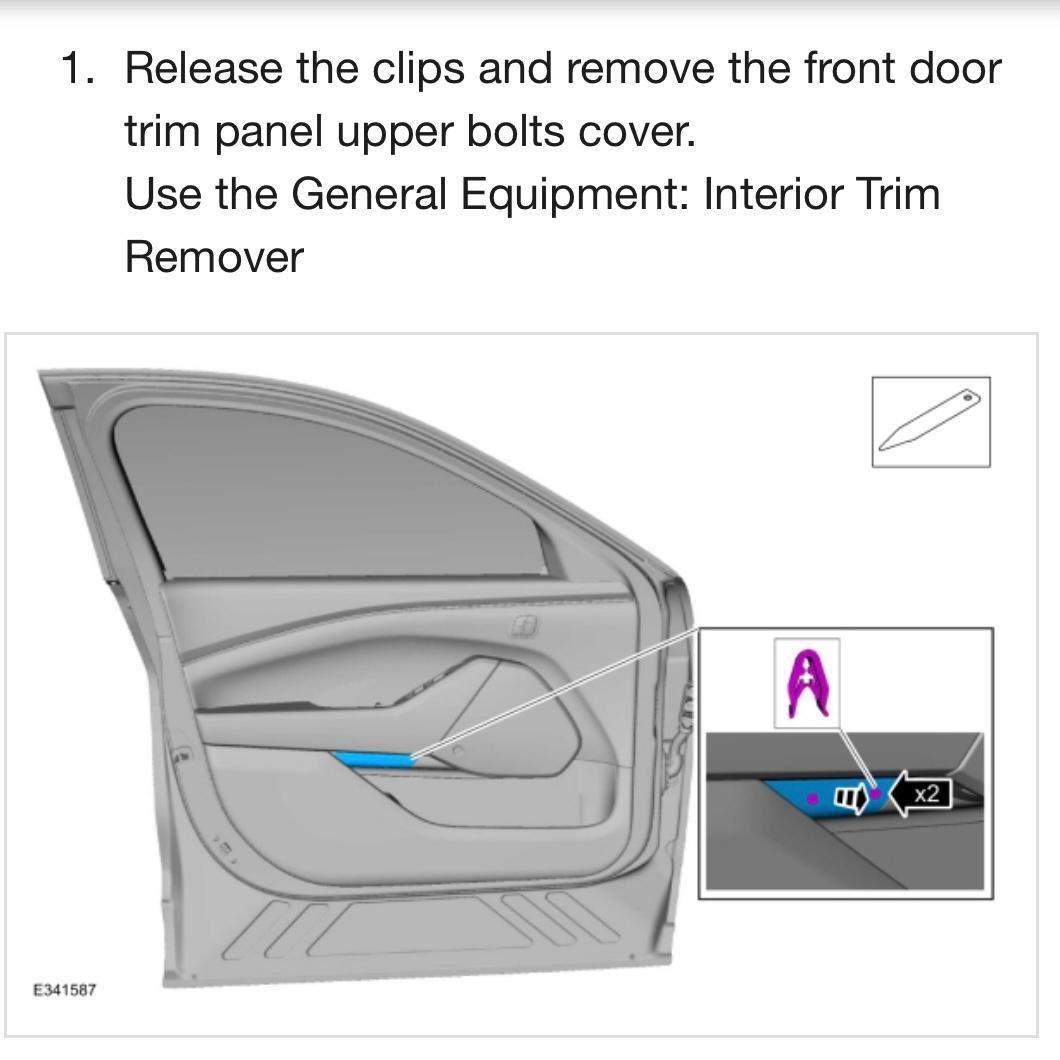

step-by-step how to remove the door panel in front doors

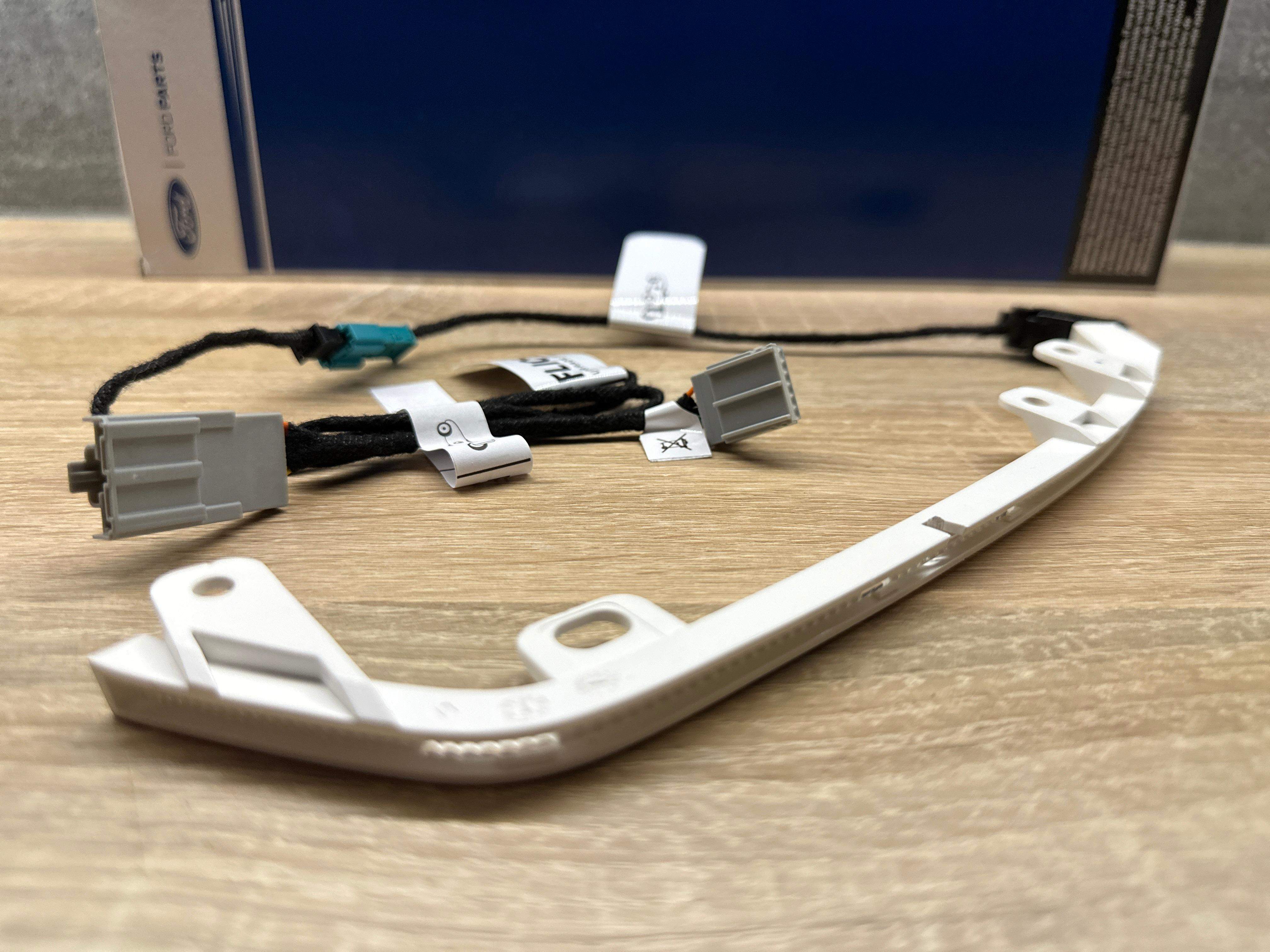

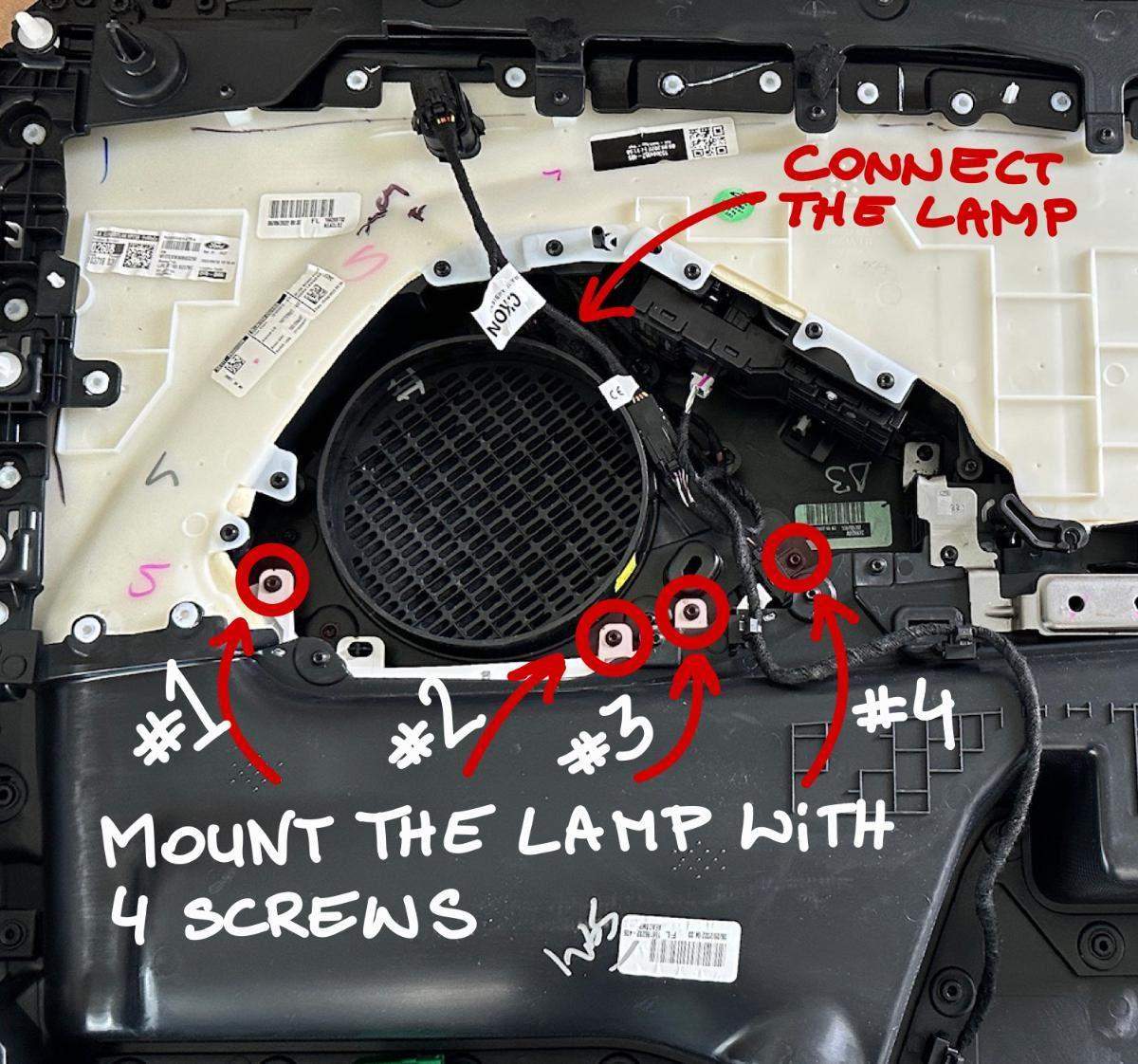

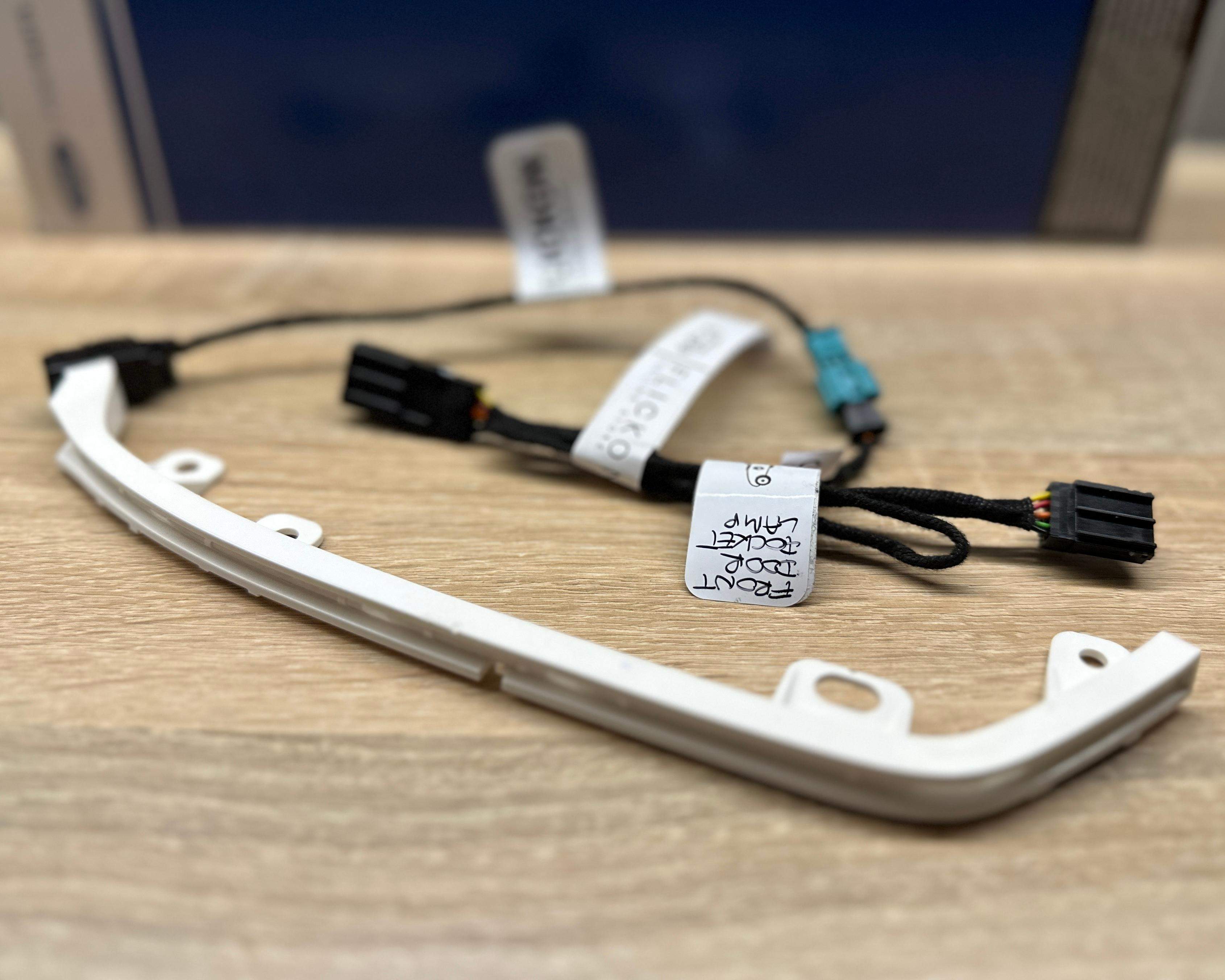

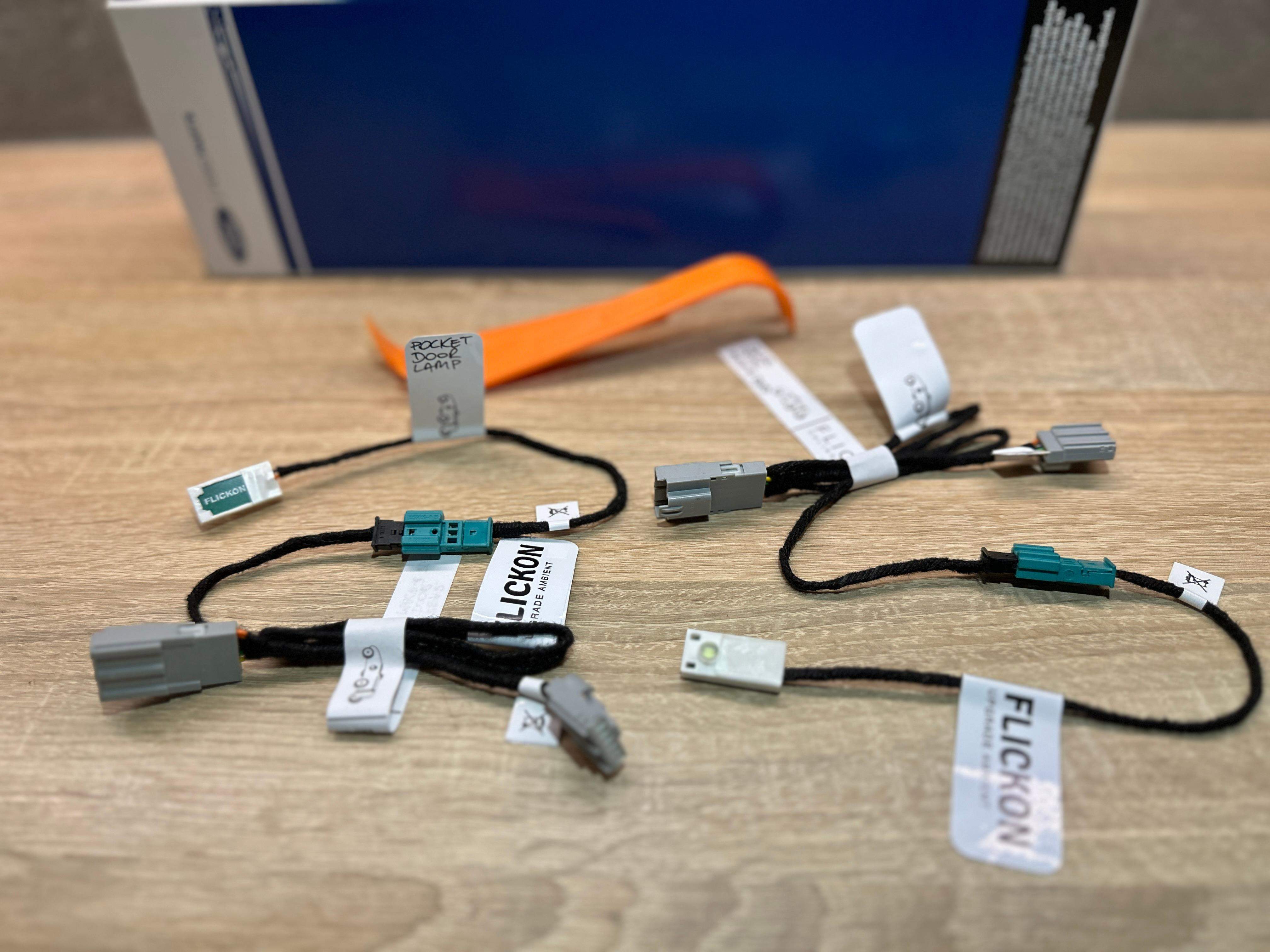

Just insert the white lamp in the door spot, mount it with 4 srews, and connect the lamp as the extension to the lock/unlock button

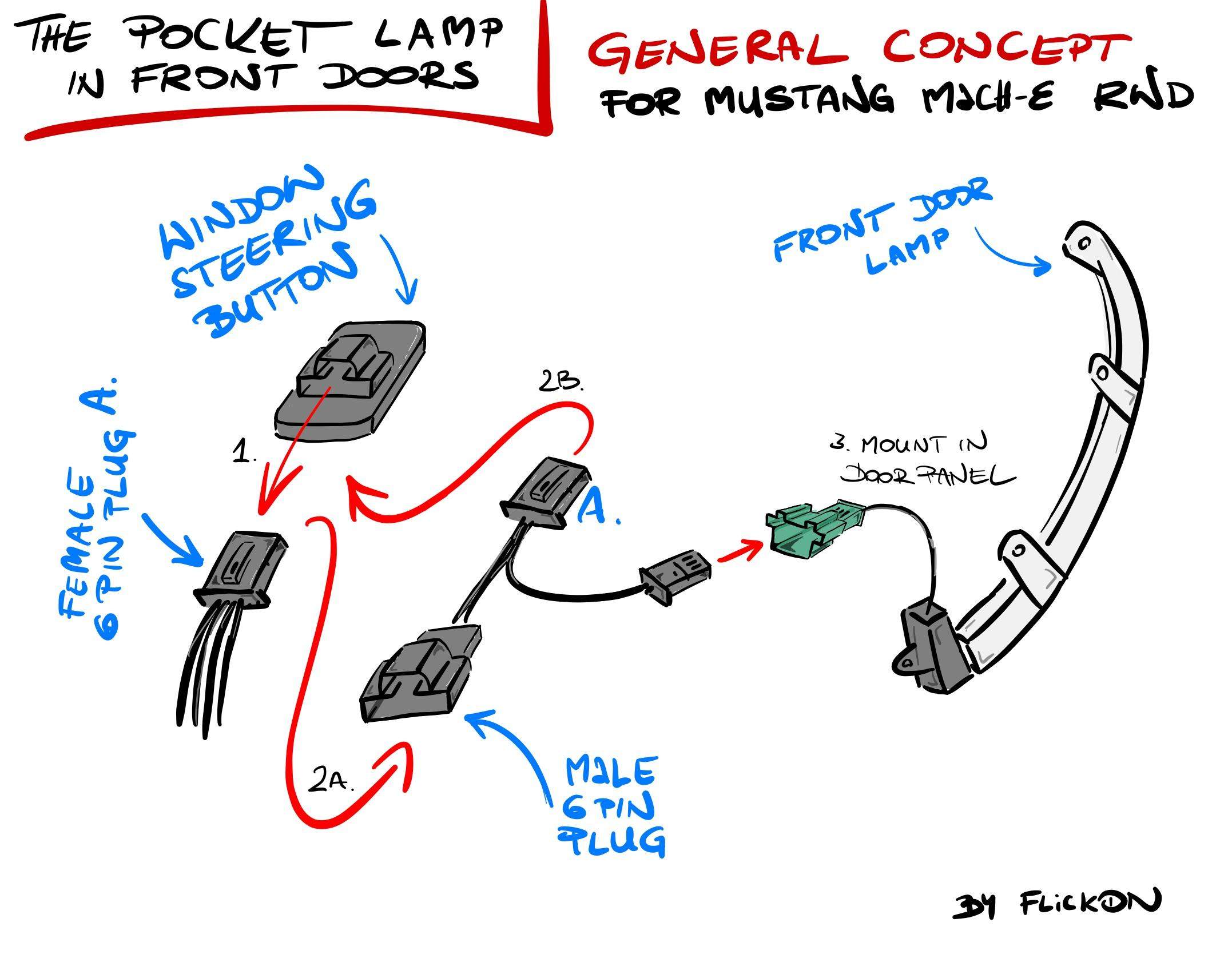

What you need is remove door panel and take out the middle part ("number 2"). Next install the lamp in the door and simple connect it as extension of window button illumination. Below you can find helpful materials and prepared tutorial.

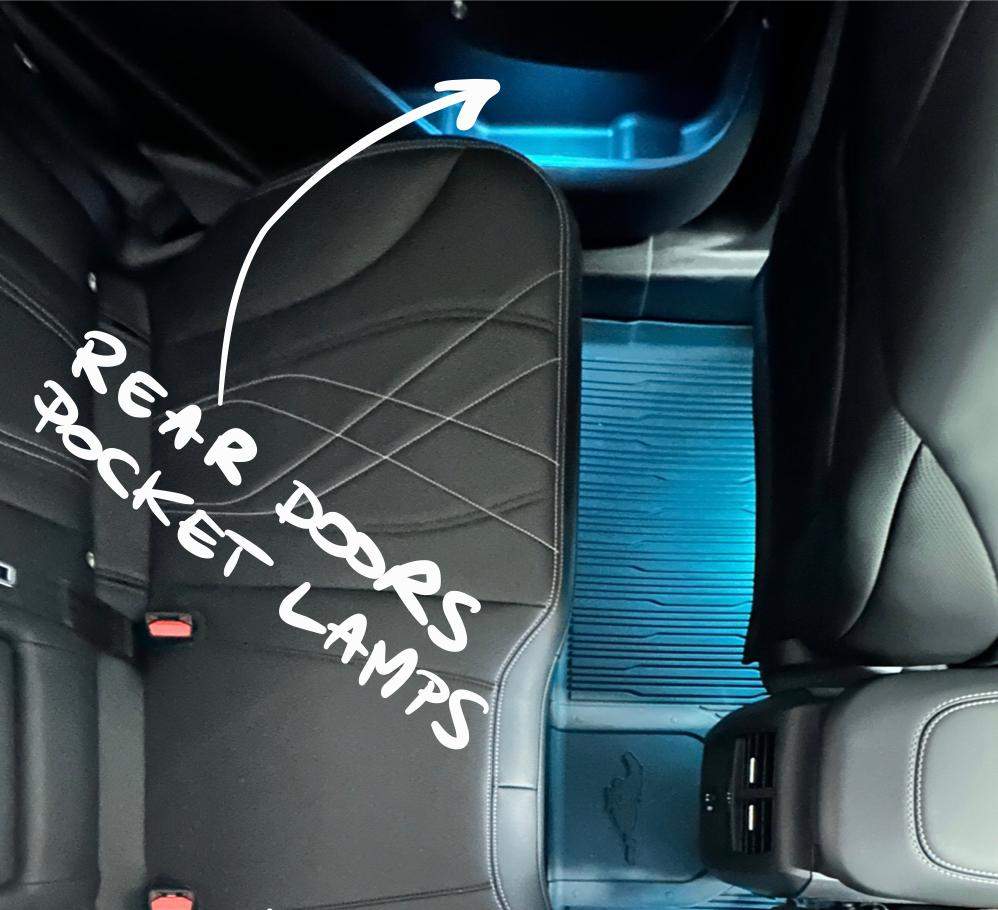

how to remove the rear doors

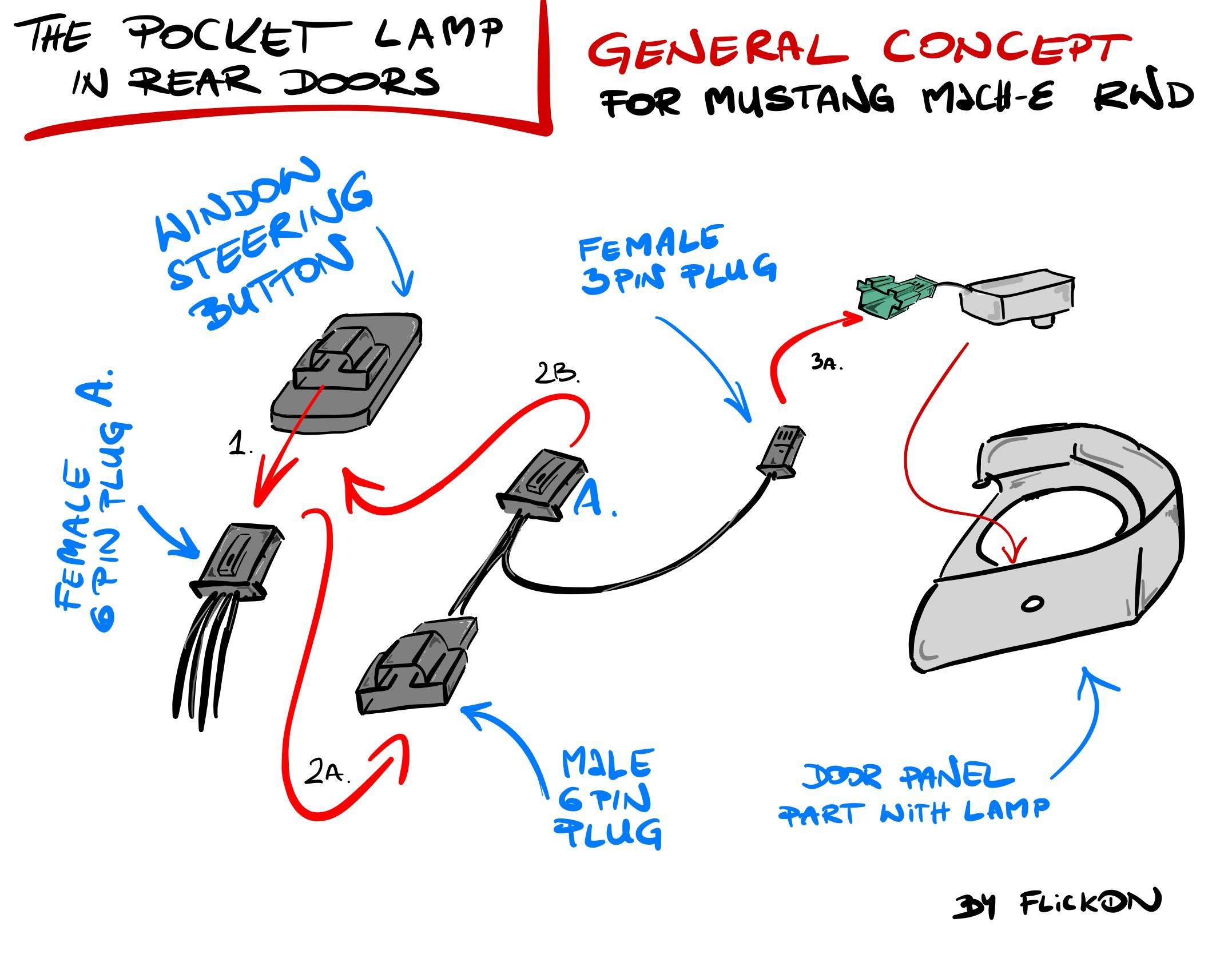

how to mount lamp in the lamp in rear door

choose the upgrade level
