Ford resigned from any ambient lighting system in the electric rear-wheel drive Mach-E (RWD). So, we have decided to fill that gap by offering ice blue sets in footwells, doors, and central tunnel areas. All were designed for plug-and-play, hassle-free installation.
CHOOSE THE UPGRADE PACK

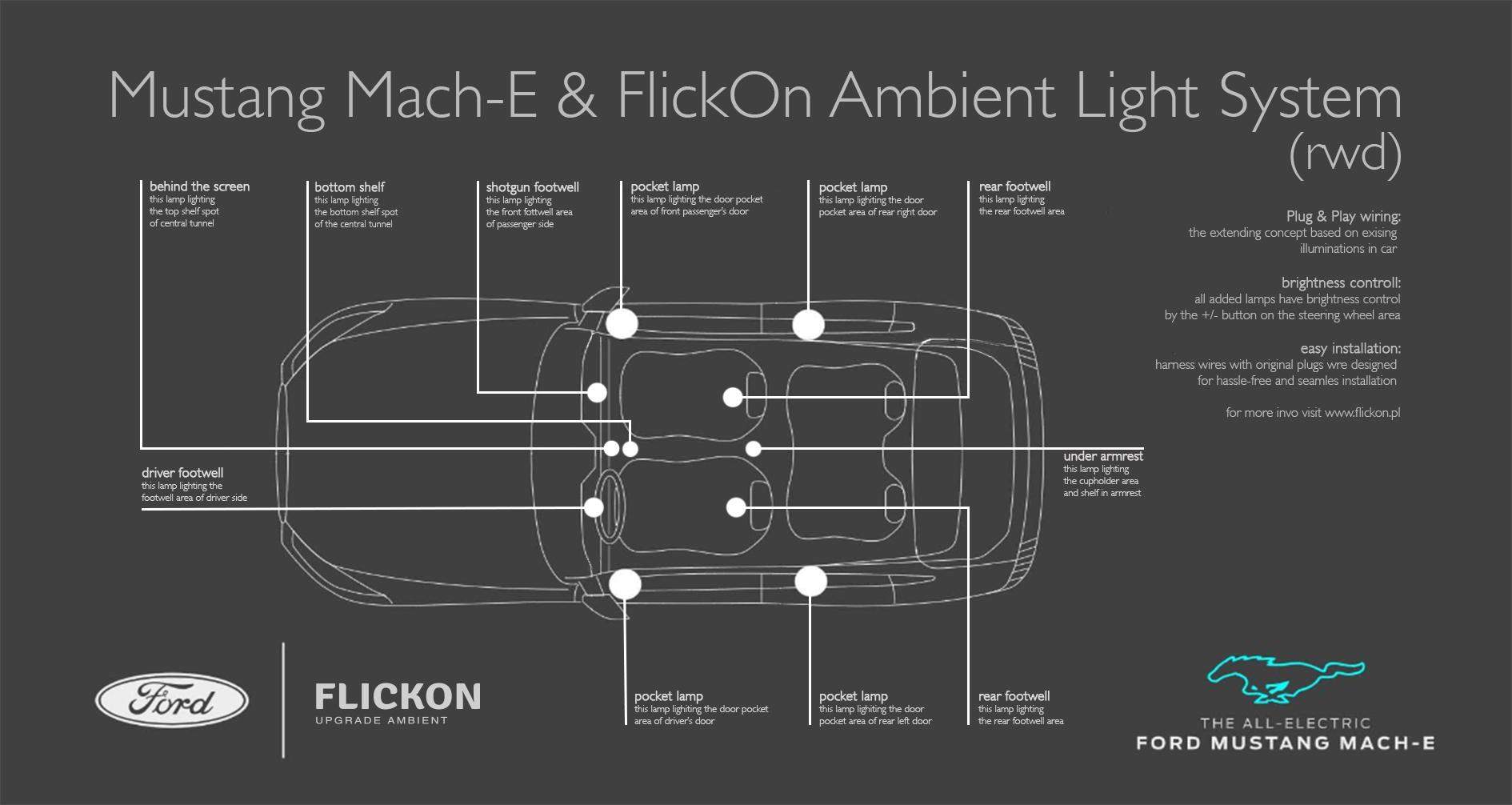

This package was designed as plug&play lights solutions to cover all the spots and socket in the front area with ready to install sets. The front package illuminates three ares: front pocket doors set (A), central tunnel set (B), and front footwells set (C).

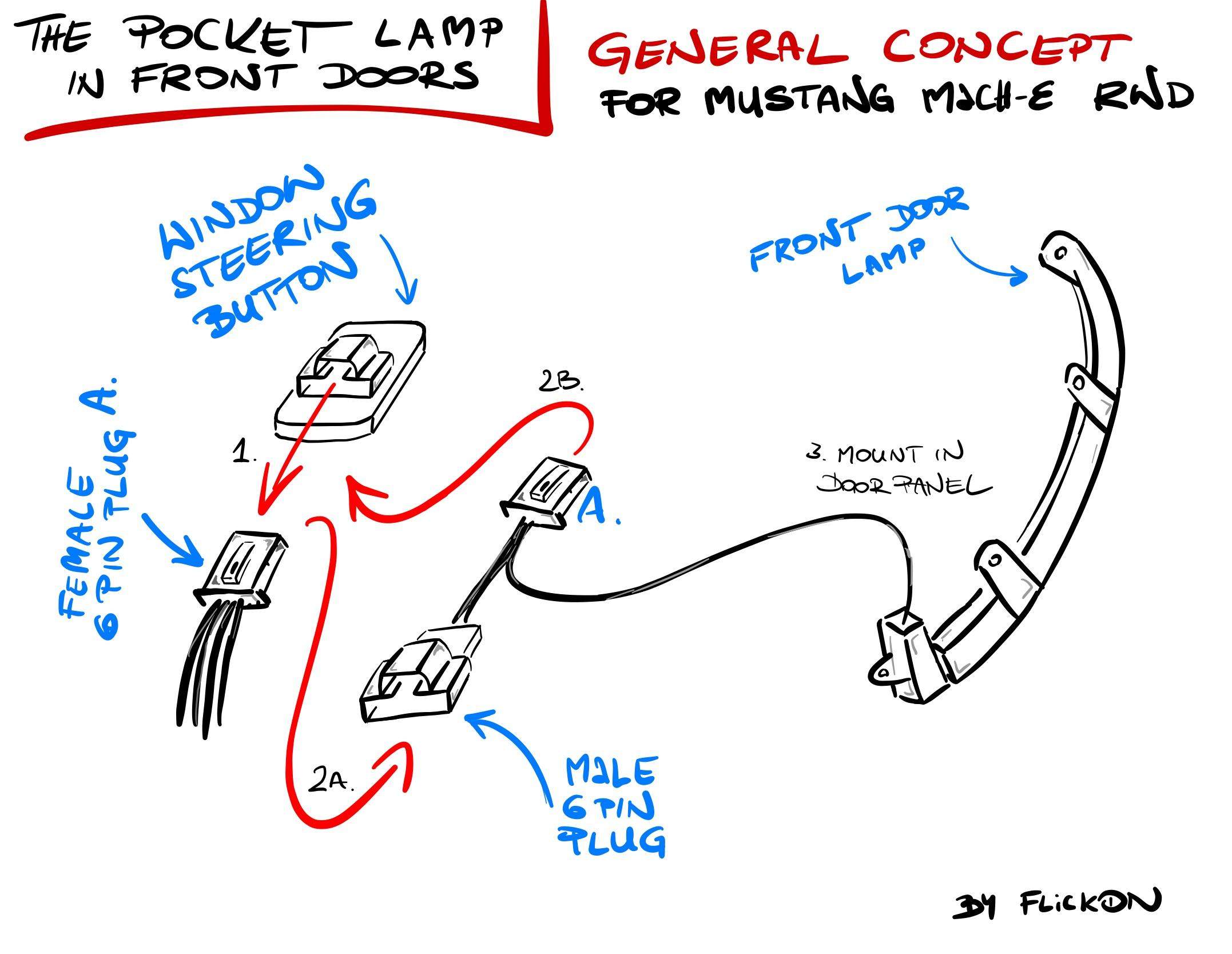

A. POCKET LAMPS in Front Doors

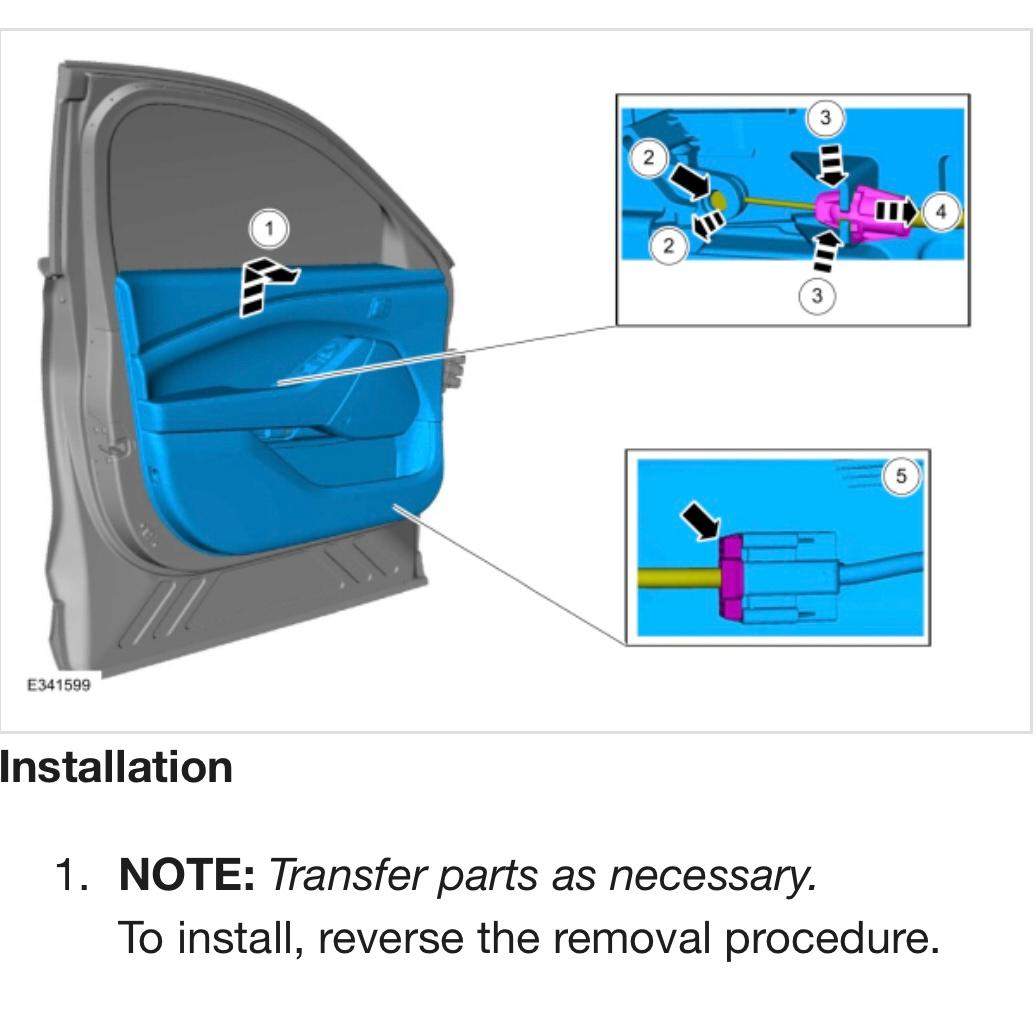

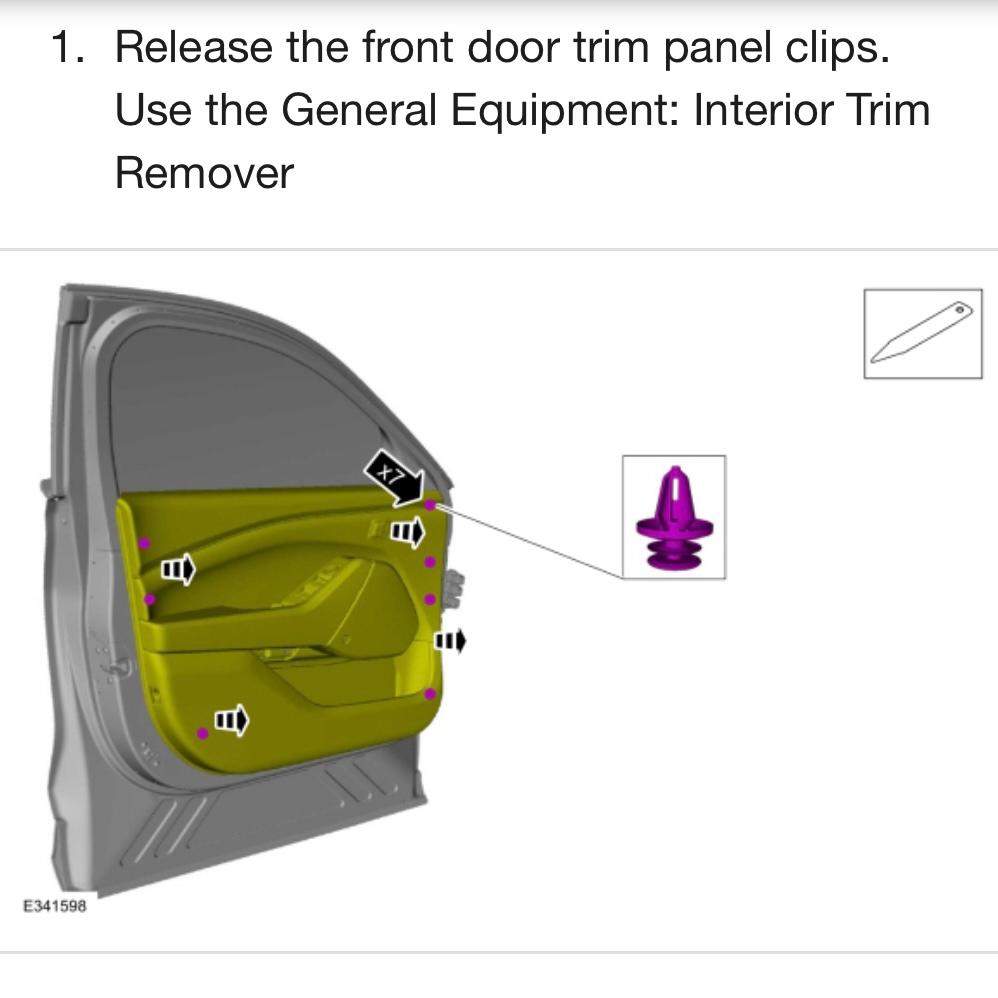

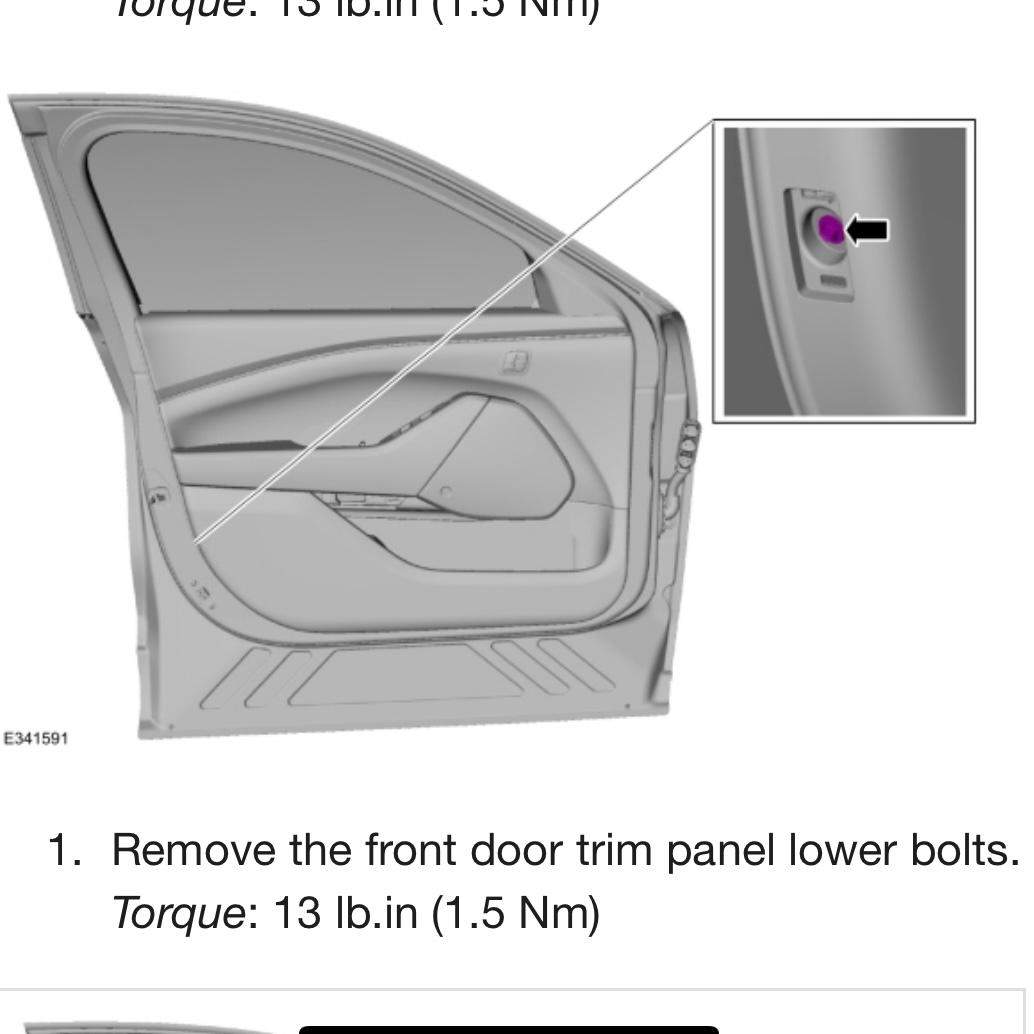

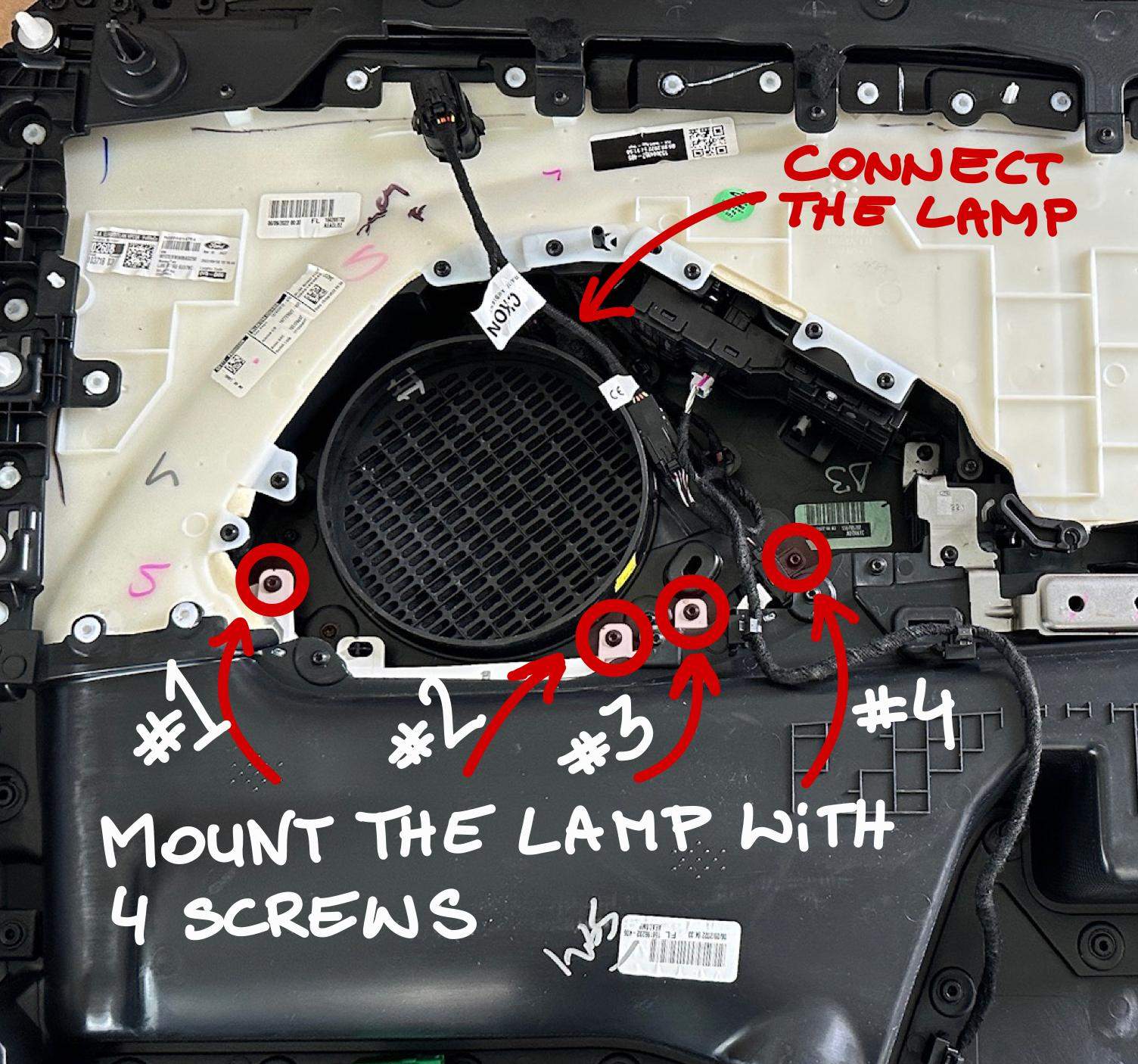

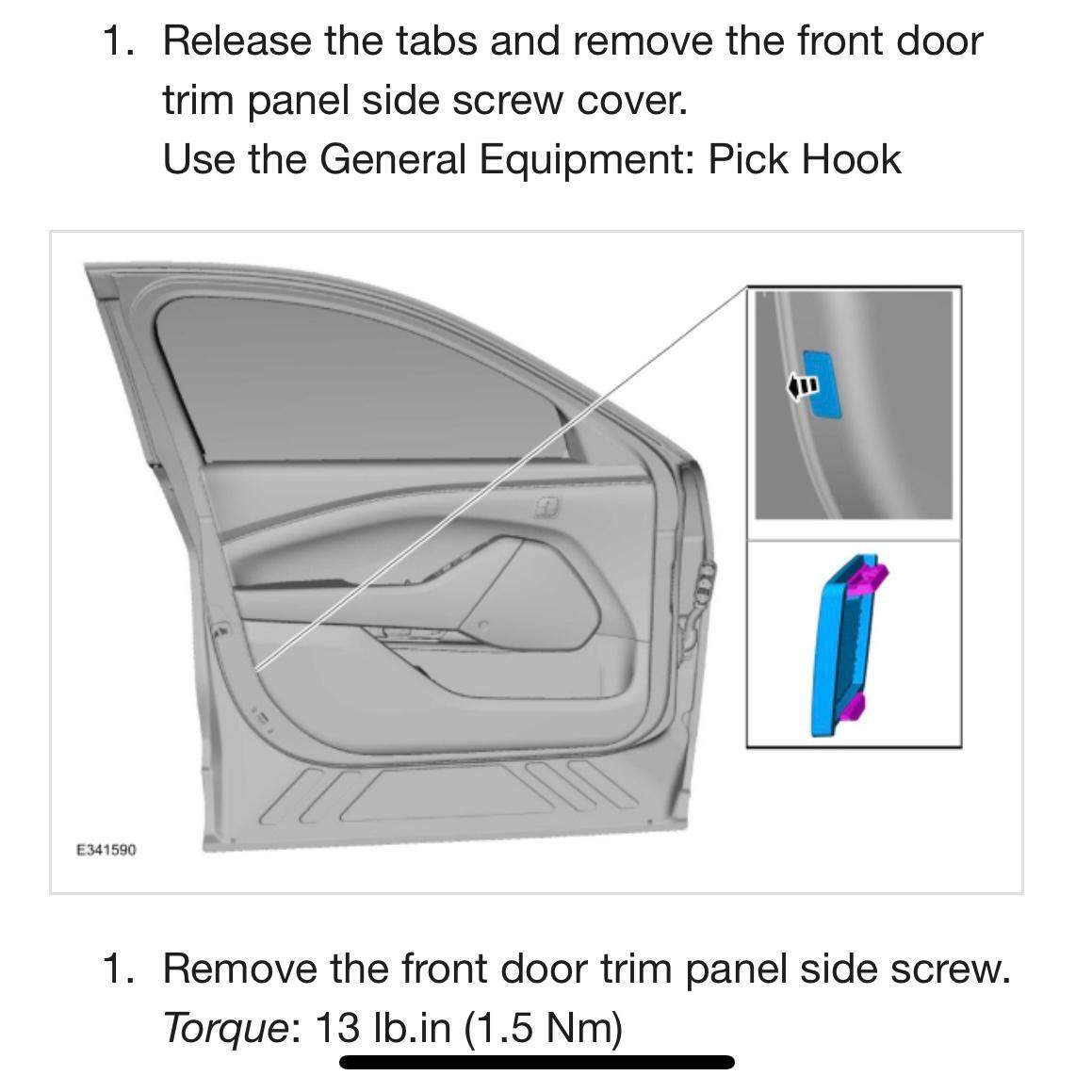

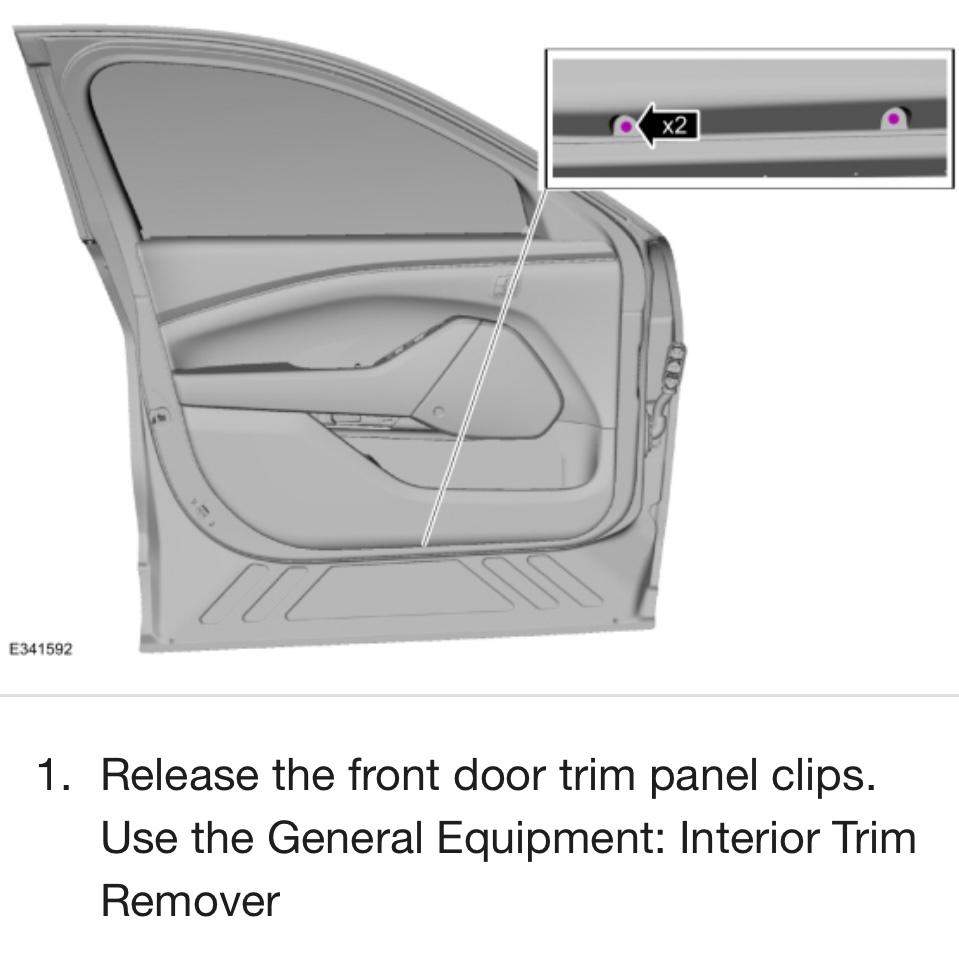

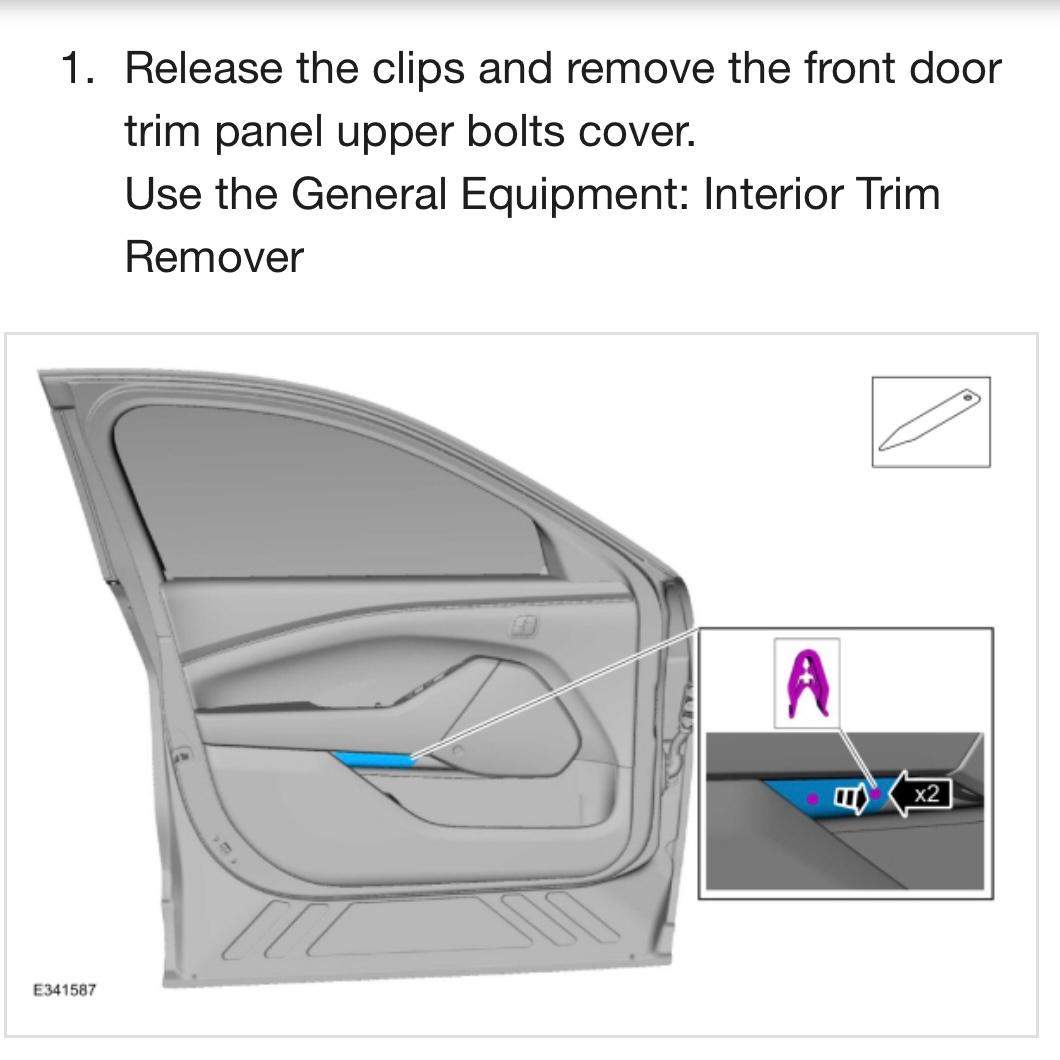

The installation is pretty simple, what you need is remove the front door panel and mount the pocket lamp with 4 additional screws in dedicated socket. Next you need to connect with crafted plug&play harness wire as extension to button illumination. All upgrade should take around 15 minutes per side. Below you find details, concept, installation quide and other helpful materials.
B. CENTRAL TUNNEL LAMPS

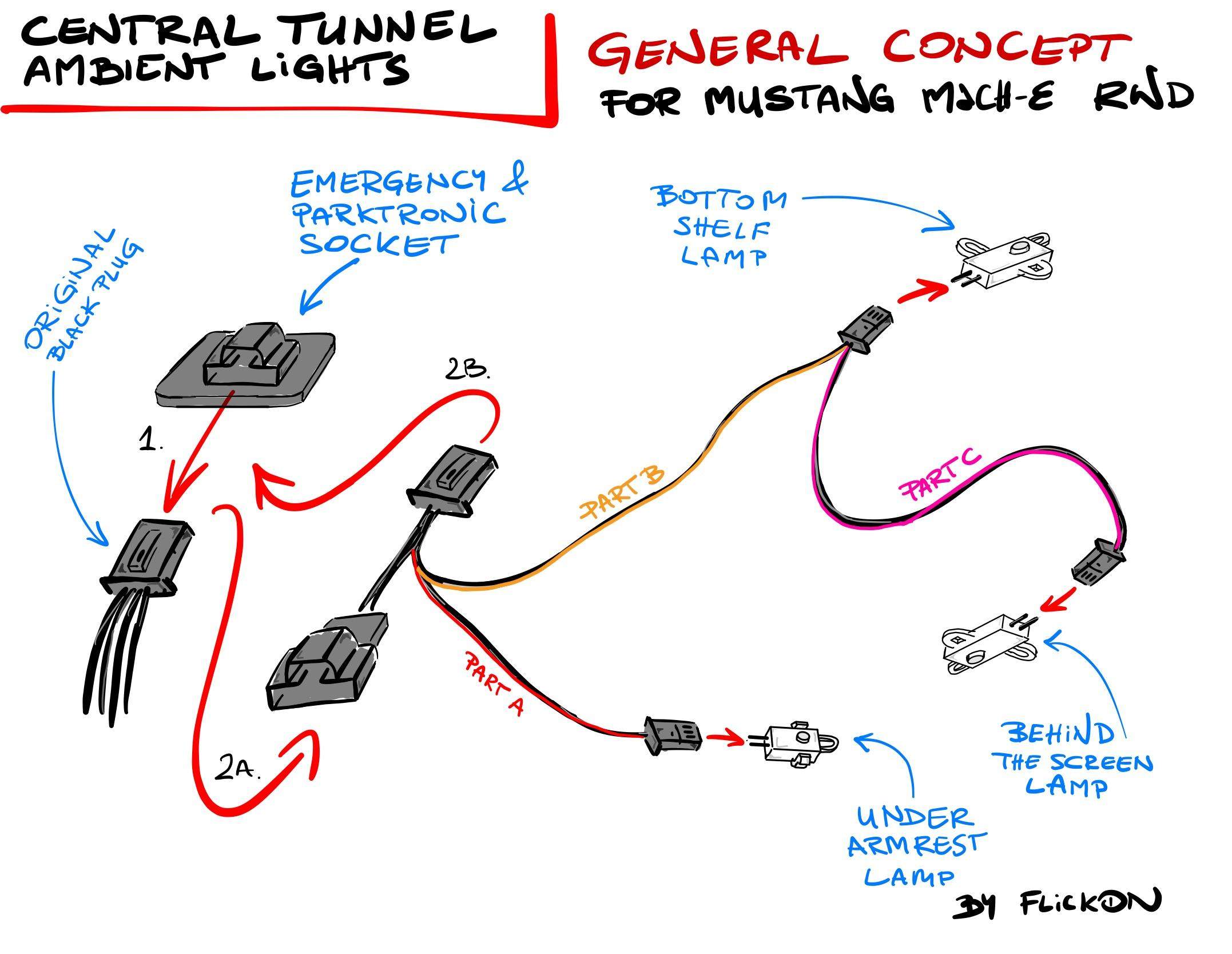

It was designed for easy and non-ivasive plug&play installation. We are powering the additional lamps using illumination from parking&emergency button. We crafted the harness wire and devide it on 3 parts. Part "A" for connect under armrest lamp, Part "B" for connecting the bottom shelf lamp, and Part "C" for behind the screen lamp. The whole process should take around 30 minutes.
access to the central tunnel
What you need is get access inside the central tunnel by removing the cover in the middle (with parking & emergency button and wheel gear circle)
the under armrest lamp
There is ready to install socket so what you need is get access inside the central tunnel, pull the wires and mount the lamps.
Pull the Part A of the harness wire under the armrest shelf, and connect the power source. Next plug the lamp and install it in socket.
the bottom shelf lamp
There is ready to install socket on plastic under the top shelf plastic cover (with cupholders).
the bottom shelf lamp
To get access remove both plastic covers and pull the Part B of harness wire to the bottom shelf lamp spot.
the behind the screen lamp
There is ready to install socket on plastic element behind the screen, so what you need is remove the plastics elemets, pull the Part "C" harness wires, connect and mount the lamps in socket.
C. FOOTWELL LAMPS in Front
There are ready to install socket in both sides (driver & shotgun). Simply connect the harness wire using power sourse the behind screen lamp plug and mount connectec lamps in dedicated sockets. This part should take around 10 minutes. Below you can find more details and some helpful materials.

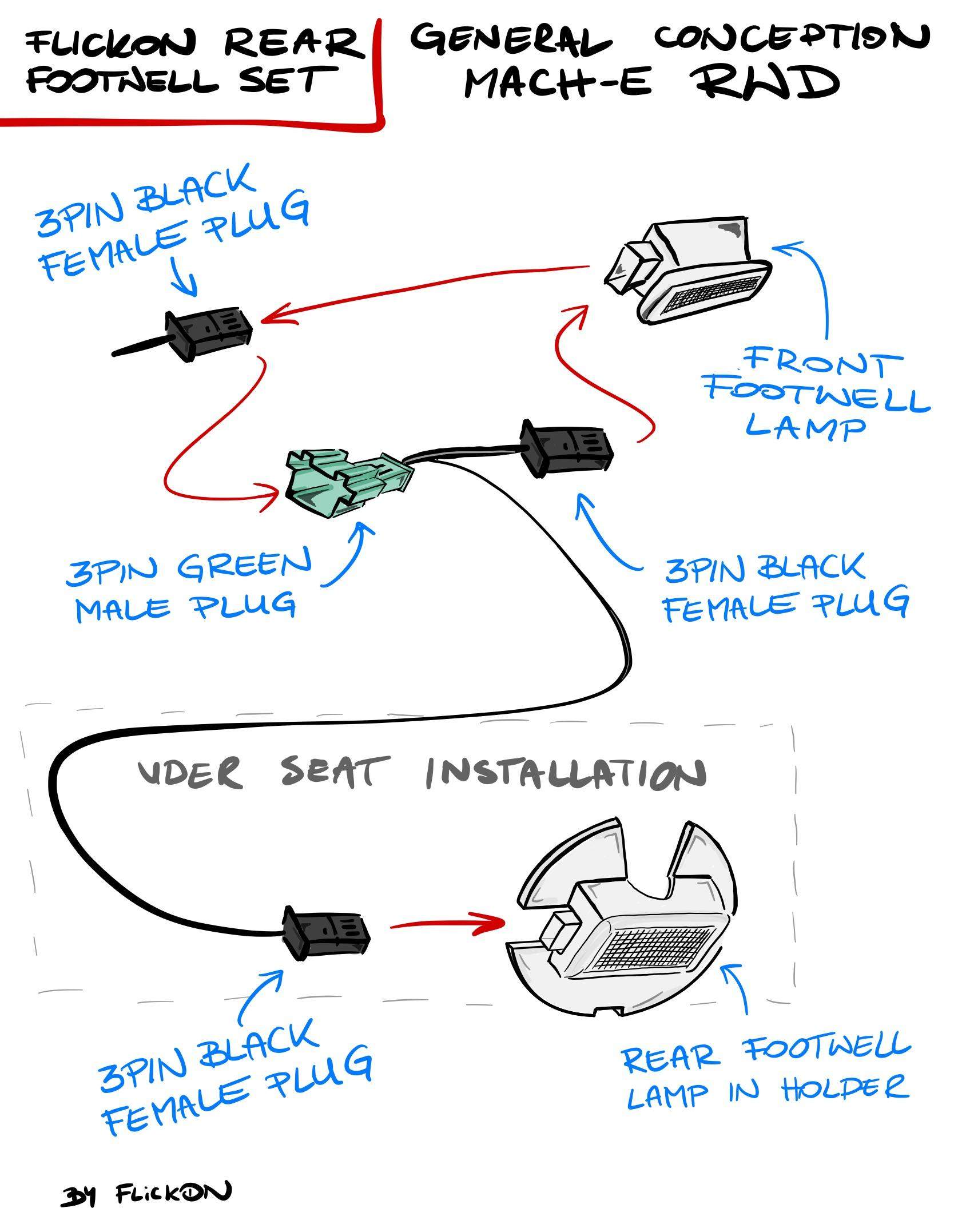

This package was designed as plug&play lights solutions to illuminate the rear area. Thanks to this pack you can extend the ambient lights into the rear footwells and rear pocket doors. Below you find more details, concept, installation quide and other helpful materials.
Transform your driving experience with our exclusive PREMIUM package. This package lets you get everything in one set, including illumination of the footwells, doors, and central tunnel. Elevate your interior ambiance and make your driving experience more luxurious. The package can be installed in selected dealerships COMING SOON
